PPTC RF-RG 16V DC Series
．Radial Leaded Devices
．Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
．Bulk packaging, tape and reel and Ammo-Pack available on most models.
．The low resistance, fast trip times, and tight trip-to-hold
．Security and fire alarm systems
．Medical equipment
．Transformers
．Satellite video receiverss

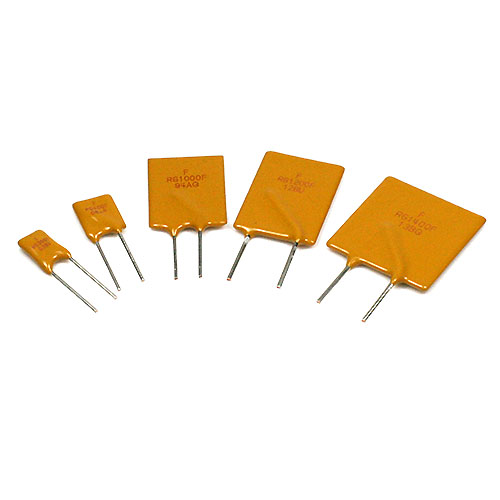

Product Pictures
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic CharacteristicsMODEL |
V max. Volts |
Imax. Amps. |
Ihold |
Itrip |
Initial Resistance |
1Hour(R1)Post-Trip Resistance |
Max. Time To |
Tripped power |
Amperes |
Ohms |
Ohms at 20℃ |
Seconds at 20℃ |
Watts at 20℃ |
||||
Hold |
Trip |
Min. |
Max. |
|||||
RF-RG300 |
16 |
100 |
3.0 |
5.1 |
0.034 |
0.105 |
2.0 |
2.3 |
RF-RG400 |
16 |
100 |
4.0 |
6.8 |
0.020 |
0.063 |
3.5 |
2.4 |
RF-RG500 |
16 |
100 |
5.0 |
8.5 |
0.014 |
0.044 |
3.6 |
2.6 |
RF-RG600 |
16 |
100 |
6.0 |
10.2 |
0.009 |
0.033 |
5.8 |
2.8 |
RF-RG700 |
16 |
100 |
7.0 |
11.9 |
0.006 |
0.021 |
8.0 |
3.0 |
RF-RG800 |
16 |
100 |
8.0 |
13.6 |
0.005 |
0.018 |
9.0 |
3.3 |
RF-RG900 |
16 |
100 |
9.0 |
15.3 |
0.004 |
0.015 |
12.0 |
3.3 |
RF-RG1000 |
16 |
100 |
10.0 |
17.0 |
0.003 |
0.015 |
12.5 |
3.6 |
RF-RG1100 |
16 |
100 |
11.0 |
18.7 |
0.003 |
0.010 |
13.5 |
3.7 |
RF-RG1200 |
16 |
100 |
12.0 |
20.4 |
0.002 |
0.009 |
16.0 |
4.2 |
RF-RG1400 |
16 |
100 |
14.0 |
23.8 |
0.002 |
0.008 |
20.0 |
4.6 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
Standard Package: 500 PCS per polybag, Taping reel available upon request.
