PPTC RF-RL 30V DC Series
．Radial Leaded Devices
．Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
．Bulk packaging, tape and reel and Ammo-Pack available on most models.
Almost anywhere there is a low voltage power supply and a load to be protected including:
．Computers & peripherals
．Consumer electronics
．Automotive applications

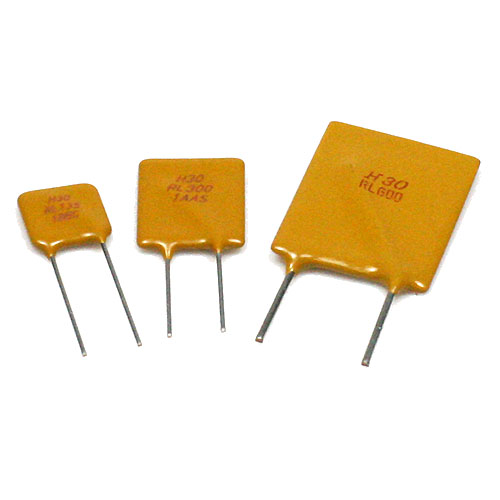

Product Pictures
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic CharacteristicsMODEL |
V max. Volts |
Imax. Amps. |
Ihold |
Itrip |
Initial Resistance |
1Hour(R1)Post-Trip Resistance |
Max. Time To |
Tripped power |
Amperes |
Ohms |
Ohms at 20℃ |
Seconds at 20℃ |
Watts at 20℃ |
||||
Hold |
Trip |
Min. |
Max. |
|||||
RF-RL090 |
30 |
40 |
0.90 |
1.80 |
0.070 |
0.22 |
5.9 |
0.6 |
RF-RL110 |
30 |
40 |
1.10 |
2.20 |
0.050 |
0.17 |
6.6 |
0.7 |
RF-RL135 |
30 |
40 |
1.35 |
2.70 |
0.040 |
0.13 |
7.3 |
0.8 |
RF-RL160 |
30 |
40 |
1.60 |
3.20 |
0.030 |
0.11 |
8.0 |
0.9 |
RF-RL185 |
30 |
40 |
1.85 |
3.70 |
0.030 |
0.09 |
8.7 |
1.0 |
RF-RL250 |
30 |
40 |
2.50 |
5.00 |
0.020 |
0.08 |
10.3 |
1.2 |
RF-RL300 |
30 |
40 |
3.00 |
6.00 |
0.020 |
0.08 |
10.8 |
2.0 |
RF-RL400 |
30 |
40 |
4.00 |
8.00 |
0.010 |
0.05 |
12.7 |
2.5 |
RF-RL500 |
30 |
40 |
5.00 |
10.00 |
0.010 |
0.05 |
14.5 |
3.0 |
RF-RL600 |
30 |
40 |
6.00 |
12.00 |
0.005 |
0.04 |
16.0 |
3.5 |
RF-RL700 |
30 |
40 |
7.00 |
14.00 |
0.005 |
0.03 |
17.5 |
3.8 |
RF-RL800 |
30 |
40 |
8.00 |
16.00 |
0.005 |
0.03 |
18.8 |
4.0 |
RF-RL900 |
30 |
40 |
9.00 |
18.00 |
0.005 |
0.02 |
20.0* |
4.2 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
Standard Package: 500 PCS per polybag, Taping reel available upon request.
