PPTC RF-RX 60V DC Series
．Radial Leaded Devices
．Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
．Bulk packaging, tape and reel and Ammo-Pack available on most models.
Almost anywhere there is a low voltage power supply and a load to be protected including:
．Computers & peripherals
．Consumer electronics
．Automotive applications

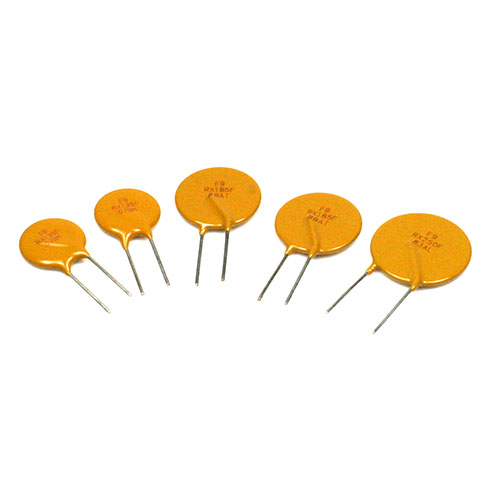

Product Pictures
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic CharacteristicsMODEL |
V max. Volts |
Imax. Amps. |
Ihold |
Itrip |
Initial Resistance |
1Hour(R1)Post-Trip Resistance |
Max. Time To |
Tripped power |
Amperes |
Ohms |
Ohms at 20℃ |
Seconds at 20℃ |
Watts at 20℃ |
||||
Hold |
Trip |
Min. |
Max. |
|||||
RF-RX010 |
90 |
40 |
0.10 |
0.20 |
2.50 |
7.50 |
4.00 |
0.38 |
RF-RX015 |
90 |
40 |
0.15 |
0.30 |
2.40 |
7.00 |
10 |
0.70 |
RF-RX017 |
90 |
40 |
0.17 |
0.34 |
2.00 |
5.00 |
3.00 |
0.48 |
RF-RX020 |
90 |
40 |
0.20 |
0.40 |
1.83 |
4.40 |
2.20 |
0.41 |
RF-RX025 |
90 |
40 |
0.25 |
0.50 |
1.25 |
3.00 |
2.50 |
0.45 |
RF-RX030 |
90 |
40 |
0.30 |
0.60 |
0.88 |
2.10 |
3.00 |
0.49 |
RF-RX035 |
90 |
40 |
0.35 |
0.70 |
0.70 |
2.50 |
10 |
1.30 |
RF-RX040 |
90 |
40 |
0.40 |
0.80 |
0.55 |
1.29 |
3.80 |
0.56 |
RF-RX050 |
90 |
40 |
0.50 |
1.00 |
0.50 |
1.17 |
4.00 |
0.77 |
RF-RX055 |
90 |
40 |
0.55 |
1.10 |
0.40 |
1.50 |
10 |
1.50 |
RF-RX065 |
90 |
40 |
0.65 |
1.30 |
0.31 |
0.72 |
5.30 |
0.88 |
RF-RX075 |
90 |
40 |
0.75 |
1.50 |
0.25 |
0.60 |
6.30 |
0.92 |
RF-RX090 |
90 |
40 |
0.90 |
1.80 |
0.20 |
0.47 |
7.20 |
0.99 |
RF-RX110 |
90 |
40 |
1.10 |
2.20 |
0.15 |
0.38 |
8.20 |
1.50 |
RF-RX135 |
90 |
40 |
1.35 |
2.70 |
0.12 |
0.30 |
9.60 |
1.70 |
RF-RX160 |
90 |
40 |
1.60 |
3.20 |
0.09 |
0.22 |
11.40 |
1.90 |
RF-RX185 |
90 |
40 |
1.85 |
3.70 |
0.08 |
0.19 |
12.60 |
2.10 |
RF-RX250 |
90 |
40 |
2.50 |
5.00 |
0.05 |
0.13 |
15.60 |
2.50 |
RF-RX300 |
90 |
40 |
3.00 |
6.00 |
0.04 |
0.10 |
19.80 |
2.80 |
RF-RX375 |
90 |
40 |
3.75 |
7.50 |
0.03 |
0.08 |
24.00 |
3.20 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
Standard Package: 500 PCS per polybag, Taping reel available upon request.
