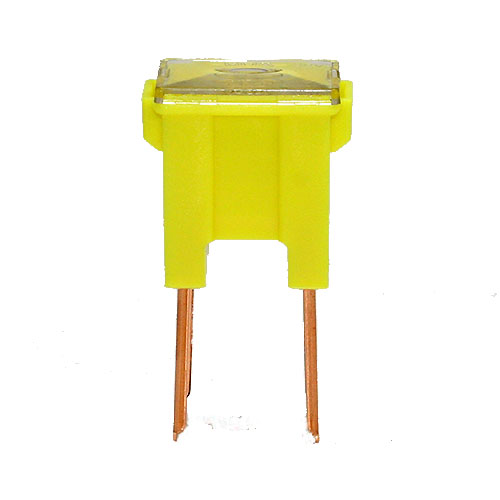

AFM Bolt-in/Vertical Indert Type Cartridge Fuse is high current type fuse used in car fuse boxes. Transparent top cover for easy diagnostic.
![](images/icon02.gif)
![](images/icon02.gif)
- ISO 8820-4
- EU RoHS, REACH
![](images/icon02.gif)
% of Rating | Current Rating | Opening Time | |
Minimum | Maximum | ||
110% |
30 – 140 Amp |
4 hrs | - |
200% | 30 – 140 Amp | 5 Sec |
100 Sec |
350% |
30 – 140 Amp | 0.5 Sec |
15 Sec |
600% | 30 – 140 Amp | - |
1 Sec |
![](images/icon02.gif)
Catalogue Number | Amperage Rating | Voltage Rating | Color Code |
AFM-30 | 30A | 32VDC | PINK |
AFM-40 | 40A | 32VDC | GREEN |
AFM-50 | 50A | 32VDC | RED |
AFM-60 | 60A | 32VDC | YELLOW |
AFM-70 | 70A | 32VDC | BROWN |
AFM-80 | 80A | 32VDC | BLACK |
AFM-100 | 100A | 32VDC | BLUE |
AFM-120 | 120A | 32VDC | GRAY |
AFM-140 | 140A | 32VDC | VIOLET |
![](images/icon02.gif)
Export Packaging: 500PCS/polybag, 2000PCS/carton.
