AFX Miniature Slow Blow Cartridge Fuse
AFX Miniature Cartridge Fuse is the most commonly used type of fuses in Japanese branded cars. Transparent top cover for easy diagnostic.

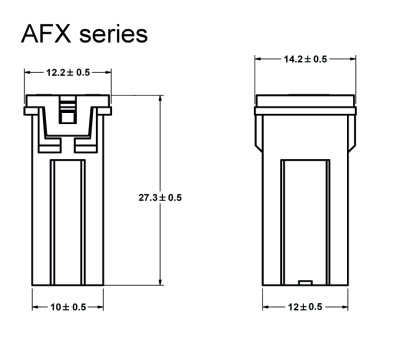

Product Pictures
Product Conformity- ISO 8820-4
- EU RoHS, REACH
Electronic Characteristics| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
110% |
20 – 60 Amp |
100 hrs | - |
| 135% | 20 – 60 Amp | 60 Sec |
1800 Sec |
200% |
20 – 60 Amp | 2 Sec |
60 Sec |
| 350% | 20 – 60 Amp | 0.2 Sec |
7 Sec |
600% |
20 – 60 Amp | 0.04 Sec |
1 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Color Code |
| AFX-20 | 20A | 32VDC | LT. BLUE |
| AFX-30 | 30A | 32VDC | PINK |
| AFX-40 | 40A | 32VDC | GREEN |
| AFX-50 | 50A | 32VDC | RED |
| AFX-60 | 60A | 32VDC | YELLOW |
Product PackagingOEM Package: 500PCS/polybag ;
Export Packaging: 500PCS/polybag, 5000PCS/carton.
