AMS Bolt-in Type Slow Blow Cartridge Fuse
AMS Bolt-in Type Cartridge Fuse is high current type fuse used in car fuse boxes. Transparent top cover for easy diagnostic.

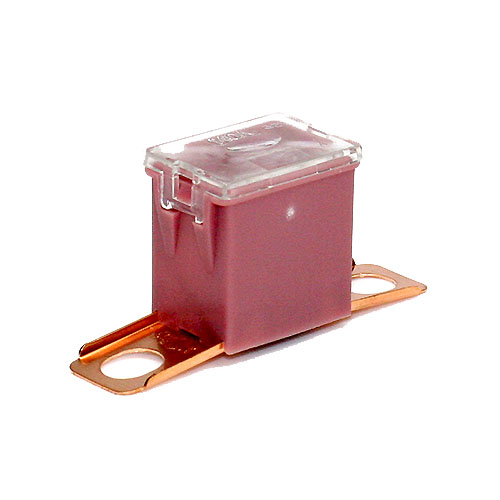

Product Pictures
Product Conformity- ISO 8820-4
- EU RoHS, REACH
Electronic Characteristics| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
110% |
30 – 140 Amp |
4 hrs | - |
| 200% | 30 – 140 Amp | 5 Sec |
100 Sec |
350% |
30 – 140 Amp | 0.5 Sec |
15 Sec |
| 600% | 30 – 140 Amp | - |
1 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Color Code |
| AMS-30 | 30A | 32VDC | PINK |
| AMS-40 | 40A | 32VDC | GREEN |
| AMS-50 | 50A | 32VDC | RED |
| AMS-60 | 60A | 32VDC | YELLOW |
| AMS-70 | 70A | 32VDC | BROWN |
| AMS-80 | 80A | 32VDC | BLACK |
| AMS-100 | 100A | 32VDC | BLUE |
| AMS-120 | 120A | 32VDC | GRAY |
| AMS-140 | 140A | 32VDC | VIOLET |
Product PackagingOEM Package: 500PCS/polybag ;
Export Packaging: 500PCS/polybag, 2000PCS/carton.
