AMP-H MAXI Blade Fuse Series are mostly used for trucks, RV, and marine vehicles.
Hansor AMP-H series MAXI Blade Fuse is manufactured using high grade industrial plastic with strict product performance check to ensure customers get the highest quality product with affordable pricing.

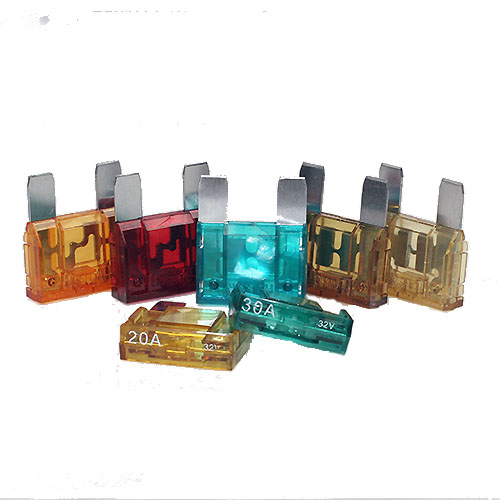

Product Pictures
Product Conformity- SAE Standard
- ISO 8820
- EU RoHS, REACH
Electronic Characteristics| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
135% |
20 – 60 Amp |
60 Sec | 1800 Sec |
| 135% | 70 – 100 Amp | 60 Sec |
3600 Sec |
200% |
20 – 100 Amp | 4 Sec |
60 Sec |
| 350% | 20 – 100 Amp | 0.2 Sec |
7 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
| AMP-H020 | 20A | 32VDC | YELLOW | 0.0039 |
| AMP-H030 | 30A | 32VDC | LT. GREEN | 0.0024 |
| AMP-H040 | 40A | 32VDC | ORANGE | 0.0018 |
| AMP-H050 | 50A | 32VDC | RED | 0.0014 |
| AMP-H060 | 60A | 32VDC | LT. BLUE | 0.0011 |
| AMP-H070 | 70A | 32VDC | TAN | 0.0009 |
| AMP-H080 | 80A | 32VDC | NATURE | 0.0008 |
| AMP-H100 | 100A | 32VDC | PURPLE | 0.0006 |
Product PackagingOEM Package: 500PCS/polybag ;
Export Packaging: 100PCS/polybag, 500PCS/inner box, 2000PCS/carton.
