ASM-H Super Mini Blade Fuse Series is being installed in new model cars.
Hansor ASM-H series Super Mini Blade Fuse is manufactured using high grade industrial plastic with strict product performance check to ensure customers get the highest quality product with affordable pricing. It is being used for new Japanese brand cars manufactured after 2007 and some models of cars and pick-up trucks from Ford and General Motors. ASM-H Super Mini Blade Fuse has wide variety of usage including cars, trucks, tractors, marine vehicles and electronics.

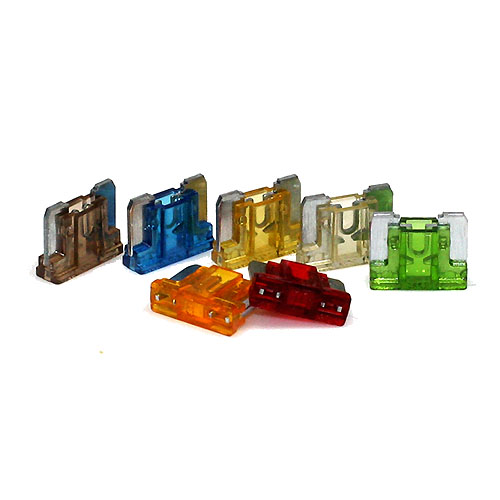

Product Pictures
Product Conformity- SAE Standards
- ISO 8820
- EU RoHS, REACH
Electronic Characteristics| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
110% |
3 – 30 Amp |
100 Hours |
|
| 135% | 3 – 30 Amp |
|
1800 Sec |
200% |
3 – 30 Amp |
|
5 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
| ASM-H03 | 3A | 32VDC | VIOLET | 0.031 |
| ASM-H04 | 4A | 32VDC | PINK | 0.023 |
| ASM-H05 | 5A | 32VDC | TAN | 0.018 |
| ASM-H07 | 7.5A | 32VDC | BROWN | 0.011 |
| ASM-H10 | 10A | 32VDC | RED | 0.0077 |
| ASM-H15 | 15A | 32VDC | BLUE | 0.0048 |
| ASM-H20 | 20A | 32VDC | YELLOW | 0.0033 |
| ASM-H25 | 25A | 32VDC | NATURAL | 0.0025 |
| ASM-H30 | 30A | 32VDC | GREEN | 0.0019 |
Product PackagingOEM Package: 500PCS/polybag ;
Export Packaging: 500PCS/polybag, 25,000PCS/carton.
