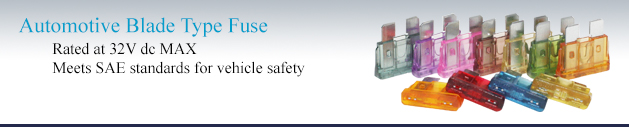

Hansor ATP-H series Standard Blade Fuse is manufactured using high grade industrial plastic with strict product performance check to ensure customers get the highest quality product with affordable pricing. It is the most common size for automotive usage. ATP-H standard blade fuse has wide variety of usage including cars, trucks, tractors, marine vehicles and electronics.
![](images/icon02.gif)
![](images/icon02.gif)
- SAE Standards
- ISO 8820
- EU RoHS, REACH
![](images/icon02.gif)
% of Rating | Current Rating | Opening Time | |
Minimum | Maximum | ||
110% |
3 – 40 Amp |
100 Hours |
|
135% | 3 – 40 Amp |
|
1800 Sec |
200% |
3 – 40 Amp |
|
5 Sec |
![](images/icon02.gif)
Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
ATP-H03 | 3A | 32VDC | VIOLET | 0.031 |
ATP-H04 | 4A | 32VDC | PINK | 0.023 |
ATP-H05 | 5A | 32VDC | TAN | 0.018 |
ATP-H07 | 7.5A | 32VDC | BROWN | 0.011 |
ATP-H10 | 10A | 32VDC | RED | 0.0077 |
ATP-H15 | 15A | 32VDC | BLUE | 0.0048 |
ATP-H20 | 20A | 32VDC | YELLOW | 0.0033 |
ATP-H25 | 25A | 32VDC | NATURAL | 0.0025 |
ATP-H30 | 30A | 32VDC | GREEN | 0.0019 |
ATP-H35 | 35A | 32VDC | BLUE GREEN | 0.0016 |
ATP-H40 | 40A | 32VDC | AMBER | 0.0014 |
![](images/icon02.gif)
Export Packaging: 1,000PCS/polybag, 10,000PCS/carton.
