Intelligent Fuse ATP-L Standard Blade Fuse Series is the most common size for almost all commercial and personal vehicles including cars, motorcycles, RV and small trucks.
Intelligent Fuse series has been awarded with several patents in U.S., Japan, Taiwan and China. For further details, please refer to the Patents & Certification information.

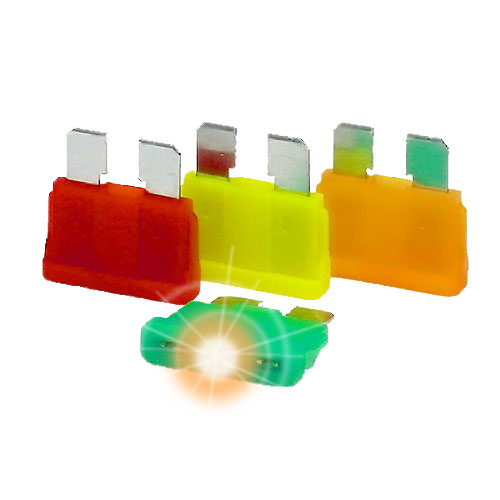

Product Pictures
Product Conformity- SAE J1284
- UL
- EU RoHS, REACH
Electronic Characteristics| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
110% |
3 – 40 Amp |
100 Hours |
|
| 135% | 3 – 40 Amp |
|
1800 Sec |
200% |
3 – 40 Amp |
|
5 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
| ATP-L03 | 3A | 32VDC | VIOLET | 0.031 |
| ATP-L04 | 4A | 32VDC | PINK | 0.023 |
| ATP-L05 | 5A | 32VDC | TAN | 0.018 |
| ATP-L07 | 7.5A | 32VDC | BROWN | 0.011 |
| ATP-L10 | 10A | 32VDC | RED | 0.0077 |
| ATP-L15 | 15A | 32VDC | BLUE | 0.0048 |
| ATP-L20 | 20A | 32VDC | YELLOW | 0.0033 |
| ATP-L25 | 25A | 32VDC | NATURAL | 0.0025 |
| ATP-L30 | 30A | 32VDC | GREEN | 0.0019 |
| ATP-L35 | 35A | 32VDC | BLUE GREEN | 0.0016 |
| ATP-L40 | 40A | 32VDC | AMBER | 0.0014 |
Product PackagingOEM Package: 1,000PCS/polybag ;
Export Packaging: 1,000PCS/polybag, 10,000PCS/carton.
