Panel Mount Fuse Holder for ATP Blade Fuse
．Insulationg Body: Flame retarding UL 94 V0 Thermoplastic material
．Contact Terminals: Nickle or Tin Plated Copper Alloy
Specification| Item Number | Maximum Current | Insulation Resistance At 500 V DC |
Contact Resistance | Dielectric strength for 60 seconds |
||

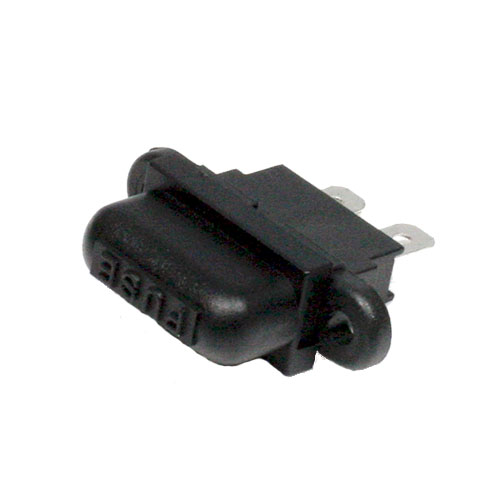

| FH - 002 |
 |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Clip terminal for Blade Type fuse |

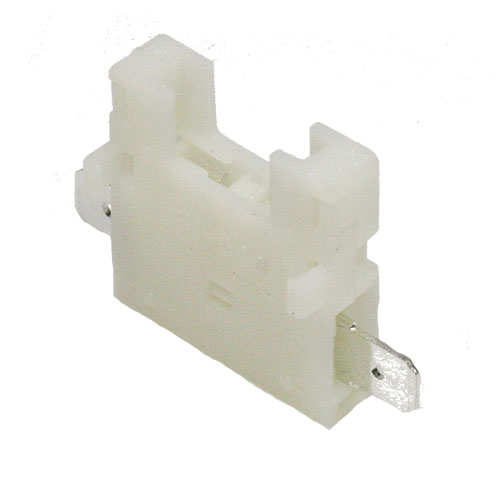

| FH - 008 |
 |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | |
Product Packaging
Standard Package: 1,000 PCS per polybag,
