QSMD0603 SMD Fuse
SMD Fuses are widely used in a varieties of electronic products such as LCD Display, PC Appiances, Portable Communication Devices, AV appliances... etc. Ceramic Chip body is ideal for float solder.

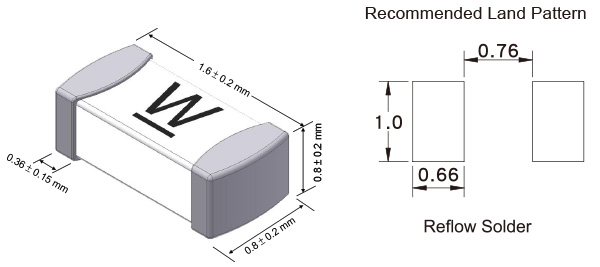

Product Pictures
Product Conformity- UL Recognized (1A~8A)
- EU RoHS, REACH
Electronic Characteristics| For Fast Acting Type | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
100% |
1 – 8 Amp |
4 hr | - |
| 200% | 1 – 8 Amp | - |
5 Sec |
300% |
1 – 8 Amp | - |
0.5 Sec |
| 1000% | 1 – 8 Amp | - |
0.02 Sec |
| For Slow Blow Type | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
100% |
1 – 8 Amp |
4 hr | - |
| 200% | 1 – 8 Amp | 1 Sec |
120 Sec |
300% |
1 – 8 Amp | - |
3 Sec |
| 1000% | 1 – 8 Amp | - |
0.05 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Blow Type | Nominal Cold Resistance |
| QSMD06LF001 | 1A | 63VDC | Fast Acting | 345 mΩ |
| QSMD06LF1.50 | 1.5A | 63VDC | Fast Acting | 160 mΩ |
| QSMD06LF002 | 2A | 63VDC | Fast Acting | 66 mΩ |
| QSMD06LF2.50 | 2.5A | 63VDC | Fast Acting | 39 mΩ |
| QSMD06LF003 | 3A | 63VDC | Fast Acting | 27 mΩ |
| QSMD06LF3.50 | 3.5A | 63VDC | Fast Acting | 21 mΩ |
| QSMD06LF004 | 4A | 63VDC | Fast Acting | 18 mΩ |
| QSMD06LF005 | 5A | 63VDC | Fast Acting | 13 mΩ |
| QSMD06LF006 | 6A | 63VDC | Fast Acting | 10 mΩ |
| QSMD06LF007 | 7A | 63VDC | Fast Acting | 8 mΩ |
| QSMD06LF008 | 8A | 63VDC | Fast Acting | 6 mΩ |
| QSMD06LT001 | 1A | 63VDC | Slow Blow | 224 mΩ |
| QSMD06LT1.50 | 1.5A | 63VDC | Slow Blow | 100 mΩ |
| QSMD06LT002 | 2A | 63VDC | Slow Blow | 60 mΩ |
| QSMD06LT2.50 | 2.5A | 63VDC | Slow Blow | 27 mΩ |
| QSMD06LT003 | 3A | 63VDC | Slow Blow | 22 mΩ |
| QSMD06LT3.50 | 3.5A | 63VDC | Slow Blow | 17 mΩ |
| QSMD06LT004 | 4A | 63VDC | Slow Blow | 14 mΩ |
| QSMD06LT005 | 5A | 63VDC | Slow Blow | 10 mΩ |
| QSMD06LT006 | 6A | 63VDC | Slow Blow | 7 mΩ |
| QSMD06LT007 | 7A | 63VDC | Slow Blow | 6 mΩ |
| QSMD06LT008 | 8A | 63VDC | Slow Blow | 5 mΩ |
Product PackagingSMD series are packaged in taping reel for pick-and-place machine.
Standard Package: 4,000 PCS per reel.
