Square Ceramic Tube Fuse
SMD Fuses are widely used in a varieties of electronic products such as LCD Display, PC Appiances, Portable Communication Devices, AV appliances... etc. Ceramic Chip body is ideal for float solder.

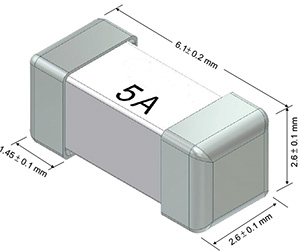

Product Pictures
Product Conformity- UL Certified for US & Canada (SEF 62mA ~ 5A)
- PSE (SEF 1A ~ 15A; SET 1A ~ 7A)
- Recognized for US & Canada (SEF 6A ~ 15A; SET 200mA ~ 7A)
- CSA Listed (SET 200mA ~ 7A)
- EU RoHS, REACH
Electronic Characteristics| For Fast Acting Type (SEF) | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
100% |
62mA – 10 Amp |
4 hr | - |
| 100% | 12 – 15 Amp | 4 hr |
- |
200% |
62mA – 10 Amp | - |
5 Sec |
| 200% | 12 – 15 Amp | - |
60 Sec |
| For Slow Blow Type (SET) | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
100% |
1 – 20 Amp |
4 hr | - |
| 200% | 1 – 20 Amp | 1 Sec |
60 Sec |
300% |
1 – 20 Amp | 0.2 Sec |
3 Sec |
| 800% | 1 – 20 Amp | 0.02 Sec |
0.1 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Blow Type |
| SEF | 62mA ~ 10A | 125VDC | Fast Acting |
| SEF | 12A ~ 15A | 65VDC | Fast Acting |
| SET | 200mA ~ 7A | 125VDC | Fast Acting |
Please contact our sales for detail specification.
Product PackagingSMD series are packaged in taping reel for pick-and-place machine.
Standard Package: 1,000 PCS per reel.
