CSMD1206 SMD Fuse
SMD Fuses are widely used in a varieties of electronic products such as LCD Display, PC Appiances, Portable Communication Devices, AV appliances... etc. Thin film ceramic body is excellent against soldering heat.

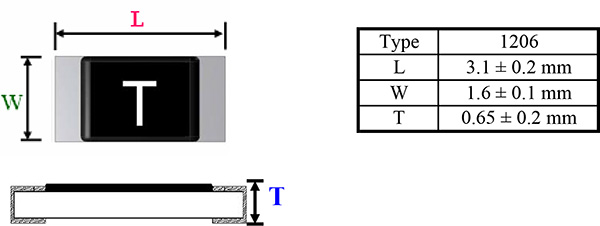

Product Pictures
Product Conformity- UL Recognized
- EU RoHS, REACH
Electronic Characteristics| For Fast Acting Type | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
100% |
0.2 – 5 Amp |
4 hr | - |
| 200% | 0.2 – 5 Amp | - |
5 Sec |
300% |
0.2 – 5 Amp | - |
0.2 Sec |
| For Slow Blow Type | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
100% |
0.2 – 5 Amp |
4 hr | - |
| 200% | 0.2 – 5 Amp | - |
120 Sec |
300% |
0.2 – 5 Amp | - |
3 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Blow Type | Nominal Cold Resistance |
| CSMD12CF.200 | 0.2A | 63VDC | Fast Acting | 2010 mΩ |
| CSMD12CF.500 | 0.5A | 63VDC | Fast Acting | 500 mΩ |
| CSMD12CF.750 | 0.75A | 63VDC | Fast Acting | 220 mΩ |
| CSMD12CF001 | 1A | 63VDC | Fast Acting | 155 mΩ |
| CSMD12CF1.25 | 1.25A | 63VDC | Fast Acting | 90 mΩ |
| CSMD12CF1.5 | 1.5A | 63VDC | Fast Acting | 69 mΩ |
| CSMD12CF002 | 2A | 63VDC | Fast Acting | 37 mΩ |
| CSMD12CF2.5 | 2.5A | 63VDC | Fast Acting | 28 mΩ |
| CSMD12CF003 | 3A | 63VDC | Fast Acting | 22 mΩ |
| CSMD12CF004 | 4A | 63VDC | Fast Acting | 14 mΩ |
| CSMD12CF005 | 5A | 63VDC | Fast Acting | 11 mΩ |
| CSMD12CF007 | 7A | 63VDC | Fast Acting | 7 mΩ |
| CSMD12CT.200 | 0.2A | 63VDC | Slow Blow | 2100 mΩ |
| CSMD12CT.500 | 0.5A | 63VDC | Slow Blow | 420 mΩ |
| CSMD12CT.750 | 0.75A | 63VDC | Slow Blow | 156 mΩ |
| CSMD12CT001 | 1A | 63VDC | Slow Blow | 115 mΩ |
| CSMD12CT1.5 | 1.5A | 63VDC | Slow Blow | 55 mΩ |
| CSMD12CT002 | 2A | 63VDC | Slow Blow | 29 mΩ |
| CSMD12CT2.5 | 2.5A | 63VDC | Slow Blow | 22 mΩ |
| CSMD12CT003 | 3A | 63VDC | Slow Blow | 18 mΩ |
| CSMD12CT004 | 4A | 63VDC | Slow Blow | 12 mΩ |
| CSMD12CT005 | 5A | 63VDC | Slow Blow | 8 mΩ |
| CSMD12CT007 | 7A | 63VDC | Slow Blow | 5 mΩ |
Product PackagingSMD series are packaged in taping reel for pick-and-place machine.
Standard Package: 5,000 PCS per reel.
