CSMD0402 SMD Fuse
SMD Fuses are widely used in a varieties of electronic products such as LCD Display, PC Appiances, Portable Communication Devices, AV appliances... etc. Thin film ceramic body is excellent against soldering heat.

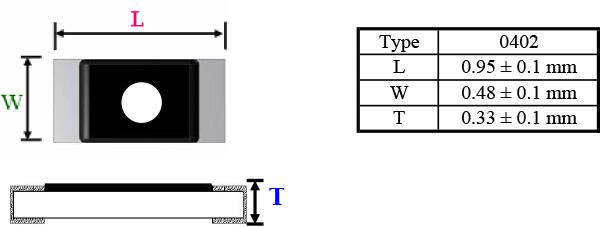

Product Pictures
Product Conformity- UL Recognized
- EU RoHS, REACH
Electronic Characteristics| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
100% |
1 – 5 Amp |
1 hr | - |
| 200% | 1 – 5 Amp | - |
5 Sec |
300% |
1 – 5 Amp | - |
0.2 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Nominal Cold Resistance |
| CSMD04CF001 | 1A | 32VDC | 60 mΩ |
| CSMD04CF002 | 2A | 32VDC | 30 mΩ |
| CSMD04CF003 | 3A | 32VDC | 20 mΩ |
| CSMD04CF004 | 4A | 32VDC | 13 mΩ |
| CSMD04CF005 | 5A | 32VDC | 10 mΩ |
Product PackagingSMD series are packaged in taping reel for pick-and-place machine.
Standard Package: 10,000 PCS per reel.
