CSMD0603 SMD Fuse
SMD Fuses are widely used in a varieties of electronic products such as LCD Display, PC Appiances, Portable Communication Devices, AV appliances... etc. Thin film ceramic body is excellent against soldering heat.

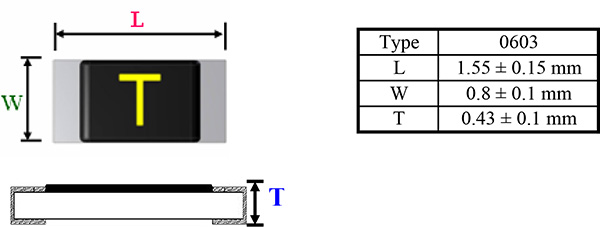

Product Pictures
Product Conformity- UL Recognized
- EU RoHS, REACH
Electronic Characteristics| For Fast Acting Type | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
100% |
0.2 – 5 Amp |
4 hr | - |
| 200% | 0.2 – 5 Amp | - |
5 Sec |
300% |
0.2 – 5 Amp | - |
0.2 Sec |
| For Slow Blow Type | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
100% |
0.2 – 5 Amp |
4 hr | - |
| 200% | 0.2 – 5 Amp | - |
120 Sec |
300% |
0.2 – 5 Amp | - |
3 Sec |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Blow Type | Nominal Cold Resistance |
| CSMD06CF.200 | 0.2A | 32VDC | Fast Acting | 2290 mΩ |
| CSMD06CF.500 | 0.5A | 32VDC | Fast Acting | 470 mΩ |
| CSMD06CF.750 | 0.75A | 32VDC | Fast Acting | 178 mΩ |
| CSMD06CF001 | 1A | 32VDC | Fast Acting | 105 mΩ |
| CSMD06CF1.50 | 1.5A | 32VDC | Fast Acting | 58 mΩ |
| CSMD06CF002 | 2A | 32VDC | Fast Acting | 28 mΩ |
| CSMD06CF2.50 | 2.5A | 32VDC | Fast Acting | 22 mΩ |
| CSMD06CF003 | 3A | 32VDC | Fast Acting | 17 mΩ |
| CSMD06CF004 | 4A | 32VDC | Fast Acting | 12 mΩ |
| CSMD06CF005 | 5A | 32VDC | Fast Acting | 9 mΩ |
| CSMD06CT.200 | 0.2A | 32VDC | Slow Blow | 1900 mΩ |
| CSMD06CT.500 | 0.5A | 32VDC | Slow Blow | 350 mΩ |
| CSMD06CT.750 | 0.75A | 32VDC | Slow Blow | 145 mΩ |
| CSMD06CT001 | 1A | 32VDC | Slow Blow | 90 mΩ |
| CSMD06CT1.50 | 1.5A | 32VDC | Slow Blow | 40 mΩ |
| CSMD06CT002 | 2A | 32VDC | Slow Blow | 24 mΩ |
| CSMD06CT2.50 | 2.5A | 32VDC | Slow Blow | 19 mΩ |
| CSMD06CT003 | 3A | 32VDC | Slow Blow | 133 mΩ |
| CSMD06CT004 | 4A | 32VDC | Slow Blow | 9 mΩ |
| CSMD06CTT005 | 5A | 32VDC | Slow Blow | 5 mΩ |
Product PackagingSMD series are packaged in taping reel for pick-and-place machine.
Standard Package: 5,000 PCS per reel.
