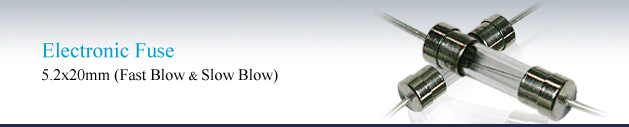

This is the most widely used electronic fuses. The dimension offers easy installation inside electronic devices or used in a fuse holder. Combine with compatible fuse clips, fuse holders or fuse blocks, devices can be designed with easy access to replace the fuse.

• UL, CSA, VDE, TUV, PSE(see specification for details)
• EU RoHS, REACH

Model Number	Rated Current	Rated Voltage	Blown Type	Casing Material	Certification
GFE	10mA~20A	250V	Fast Acting	Glass	UL/CSA/PSE
GSL	10mA~20A	250V	Time Lag	Glass	UL/CSA/PSE
GBM	10mA~20A	250V	Fast Acting	Ceramic	UL/CSA/PSE
GTE	500mA~10A	250V	Time Lag	Glass	UL/CSA/PSE
GDA	10mA~20A	250V	Time Lag	Ceramic	UL/CSA/PSE
UTE	63mA~16A	250V	Slow Blow	Glass	UR/CSA/VDE TUV/PSE
UFE	63mA~10A	250V	Fast Blow	Glass	UR/CSA/VDE TUV/PSE
UDA	500mA~25A	250V	Time Lag	Ceramic	UR/CSA/VDE TUV/PSE
UBM	63mA~16A	250V	Fast Blow	Ceramic	UR/CSA/VDE TUV/PSE

* All above items can add Pig-Tail lead-wire cap for dip type installation on PCB
* Please contact our sales for detail specification.
* Standard Package: 1,000 PCS per polybag.
