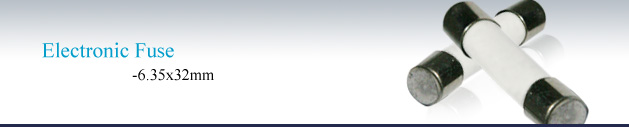

This is the most widely used electronic fuses. The dimension offers easy installation inside electronic devices or used in a fuse holder. Combine with compatible fuse clips, fuse holders or fuse blocks, devices can be designed with easy access to replace the fuse.

• UL, CSA, VDE, TUV, PSE(see specification for details)
• EU RoHS, REACH

Model Number	Rated Current	Rated Voltage	Blown Type	Casing Material	Certification
AFE	10mA~10A	250V	Fast Acting	Glass	UL/CSA/PSE
AFE	12A~30A	32V	Fast Acting	Glass	UL/CSA/PSE
ADL	10mA~30A	250V	Time Lag	Glass	UL/CSA/PSE
ATE	500mA~10A	250V	Time Lag	Glass	UL/CSA/PSE
ABE	10mA~30A	250V	Fast Acting	Ceramic	UL/CSA/PSE
ADA	100mA~30A	250V	Time Lag	Ceramic	UL/CSA/PSE
JSO	10mA~30A	250V	Normal Blow	Glass	PSE

* All above items can add Pig-Tail lead-wire cap for dip type installation on PCB
* Please contact our sales for detail specification.
* Standard Package: 1,000 PCS per polybag.
