In-Line Fuse Holder for Ø5.2mm Tube Fuse
Example:
Specification| Item Number | Maximum Current | Insulation Resistance At 500 V DC |
Contact Resistance | Dielectric strength for 60 seconds |
Body Material | Lead Wire in Loop | ||

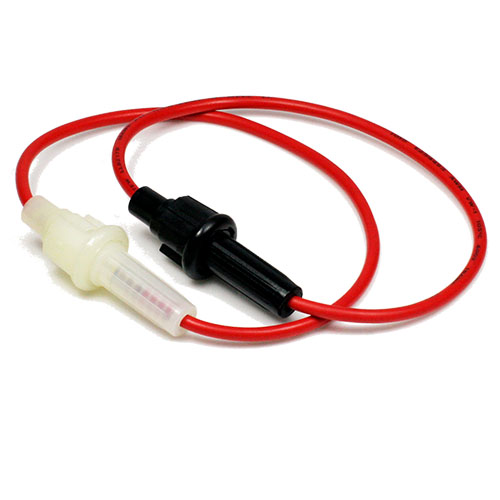

| FH - 209 |
 |
10 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 16# to 20# AWG | Bayonet Type |

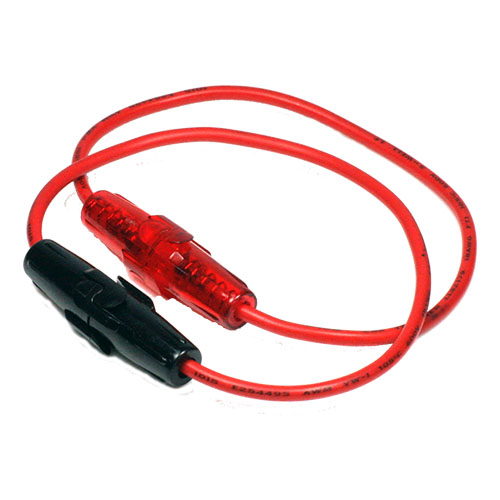

| FH - 205 |
 |
10 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1000 V Min. | Polycarbonate P.C. | 16# to 20# AWG | Interlock Type | FH - 215 |
 |

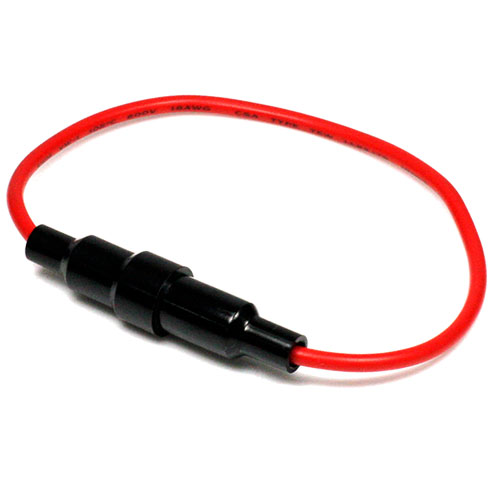

15 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 2000 V Min. | Bakelite P.C. | 16# to 20# AWG | Screw Type |
Product Packaging
Standard Package: 1,000 PCS per polybag,
