Panel Mount Fuse Holder for Ø5.2mm Tube Fuse
．Insulationg Body: Flame retarding UL 94 V0 Thermoplastic material
．Contact Terminals: Nickle or Tin Plated Copper Alloy
Specification| Item Number | Maximum Current | Insulation Resistance At 500 V DC |
Contact Resistance | Dielectric strength for 60 seconds |
||

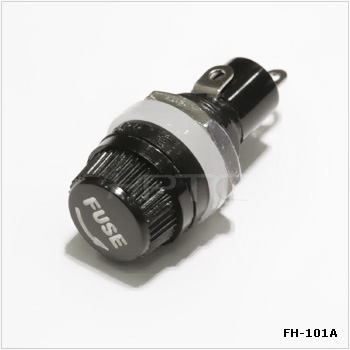

| FH - 101A |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Screw Knob |

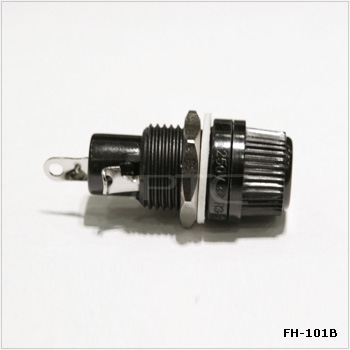

| FH - 101B |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Screw Knob |

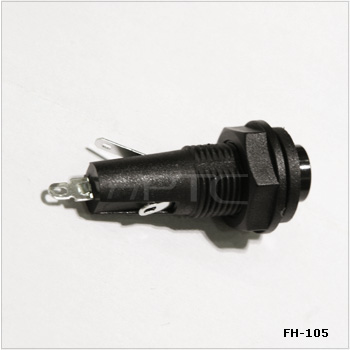

| FH - 105 |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Screw Drive Knob |

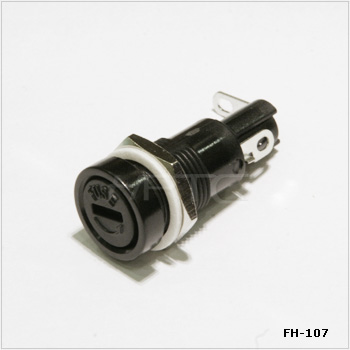

| FH - 107 |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Bayonet Knob |

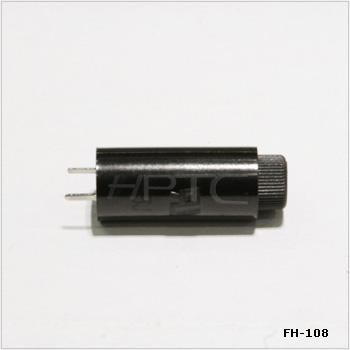

| FH - 108 |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1000 V Min. | Screw Knob |
| FH - 109 |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1000 V Min. | Bayonet Knob |
Product Packaging
Standard Package: 1,000 PCS per polybag,
