In-Line Fuse Holder for Ø6.3mm Tube Fuse
Example:
Specification| Item Number | Maximum Current | Insulation Resistance At 500 V DC |
Contact Resistance | Dielectric strength for 60 seconds |
Body Material | Lead Wire in Loop | ||

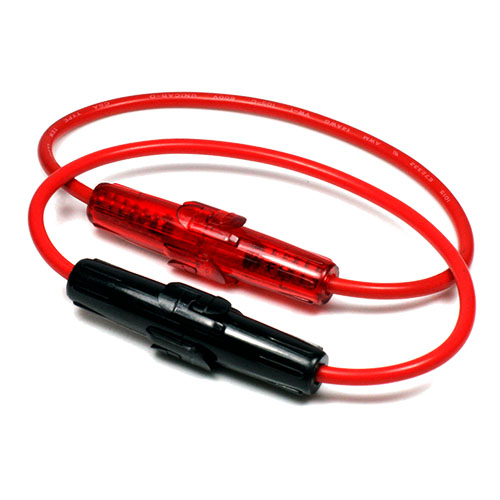

| FH-204 |
 |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Polycarbonate P.C. | 14# to 20# AWG | Interlock Type |
| FH-212 |  |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Nylon PA 66 | 14# to 20# AWG | Hinged Body Type |

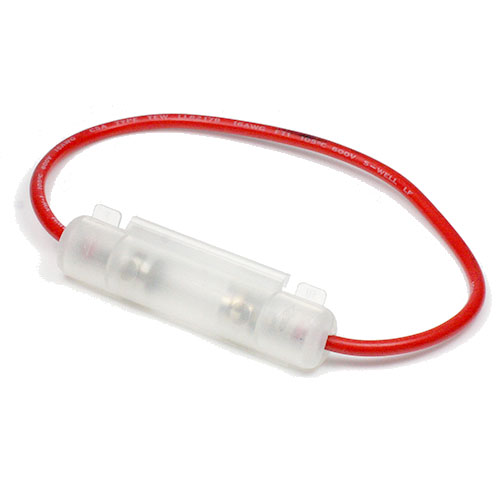

| FH-207 |
 |
10 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | P.P | 14# to 20# AWG | Hinged Body Type |

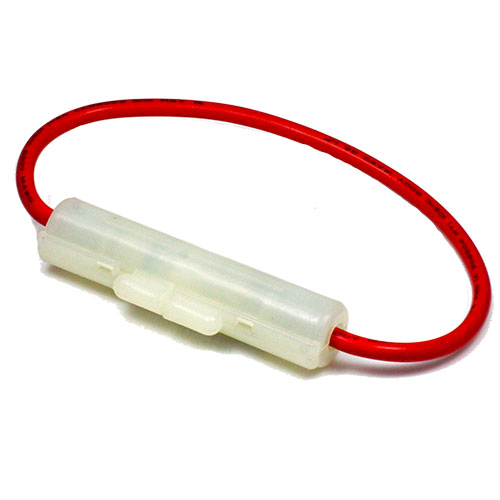

| FH-208 |
 |
20 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1500 V Min. | Nylon PA 6 | 14# to 20# AWG | Hinged Body Type |

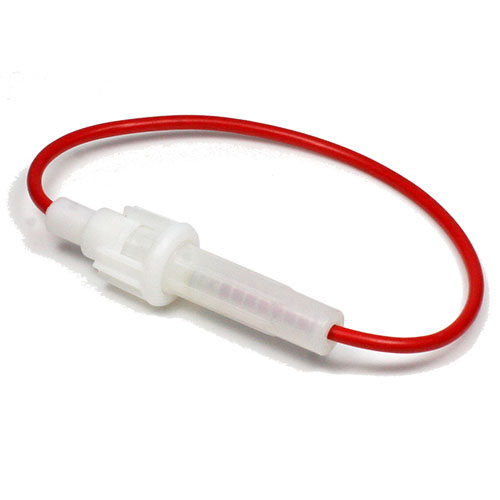

| FH-201 |
 |
10 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | P.P. | 16# to 20# AWG | Bayonet Type |

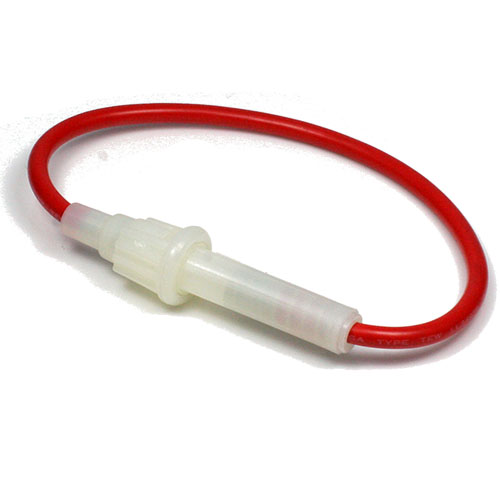

| FH-206 |
 |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 12# to 20# AWG | Bayonet Type |
| FH-210 |
|
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Nylon | 10# to 18# AWG | Heavy Duty Bayonet Type |

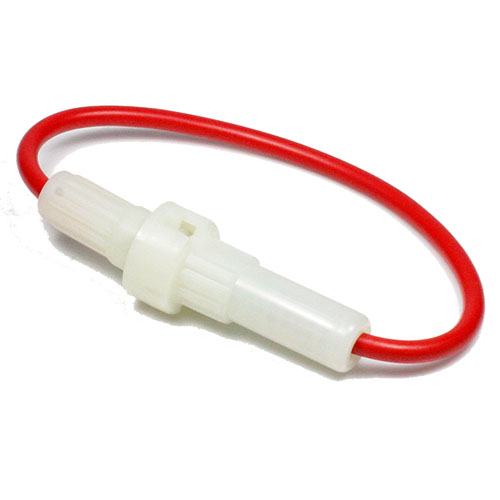

| FH-211 |
 |
40 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Nylon With Fiber Glass | 10# to 16# AWG | Heavy Duty Bayonet Type |

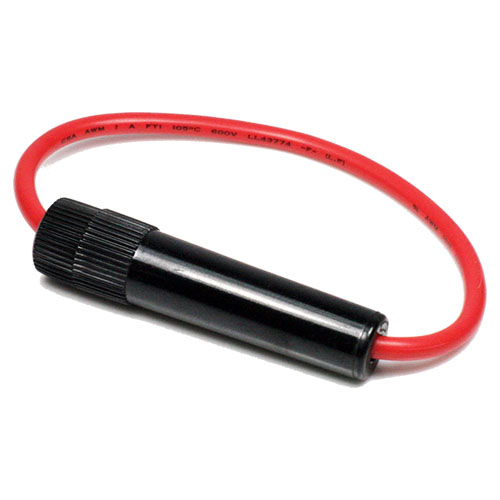

| FH-202 |
 |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Bakelite | 14 to 20# AWG | Screw Type |

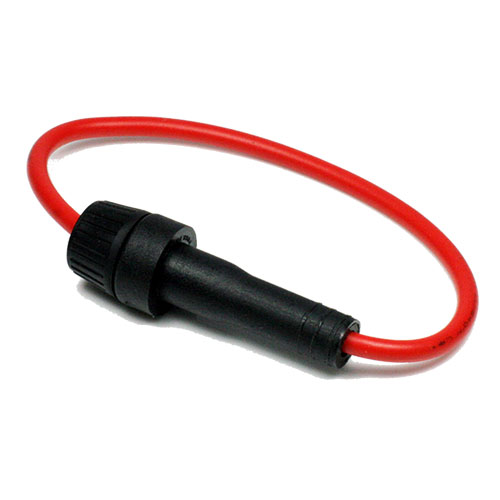

| FH-203 |
 |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Bakelite | 10# to 20# AWG | Bayonet Type |

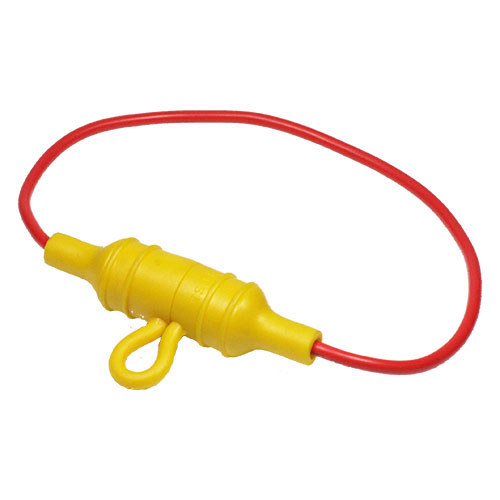

| FH-306 |
 |
10 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | PVC | 12# to 20# AWG | Snap Lock Type |

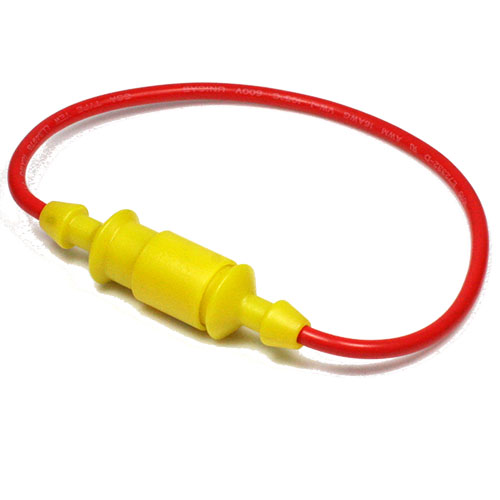

| FH-307 |
 |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 14# to 18# AWG | Bayonet Type |

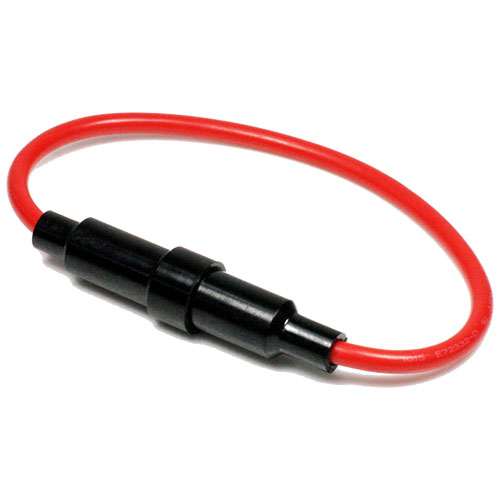

| FH-315 |
 |
15 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Bakelite | 12# to 20# AWG | Screw Type |
Product Packaging
Standard Package: 100 PCS per polybag,
