Panel Mount Fuse Holder for Ø5.2mm Tube Fuse
．Insulationg Body: Flame retarding UL 94 V0 Thermoplastic material
．Contact Terminals: Nickle or Tin Plated Copper Alloy
Specification| Item Number | Maximum Current | Insulation Resistance At 500 V DC |
Contact Resistance | Dielectric strength for 60 seconds |
||

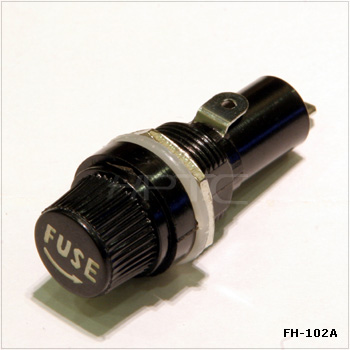

| FH - 102A |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Screw Knob |

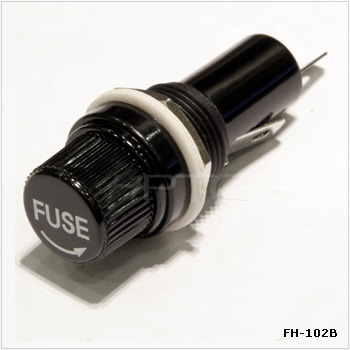

| FH - 102B |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Screw Knob |
| FH - 104 |  |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Insert Knob |

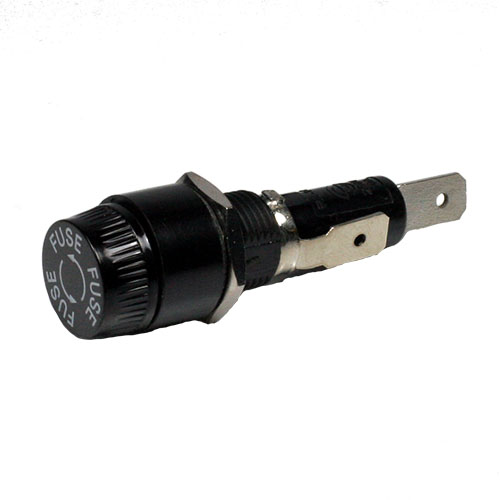

| FH - 106 |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Bayonet Knob |
| FH - 110 |  |
15 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1000 V Min. | Bayonet Knob |
| FH - 103 |  |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Screw Driver Knob |

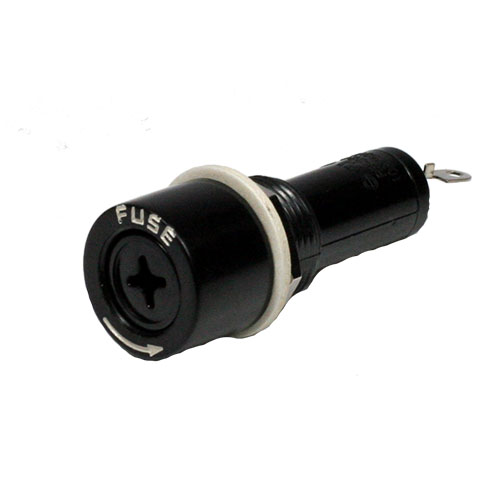

| FH - 103A |
 |
10 A 250 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Screw Driver Knob * FH-103A With Quick Connect Terminal * FH-103B With Solder Terminal |
| FH - 103B | ||||||
Product Packaging
Standard Package: 1,000 PCS per polybag,
