PPTC FLR 15~20V DC Axial Lead Series for Batteries
．Designed for Laptop computer, Rechargeable Battery packs, Lithium cells.

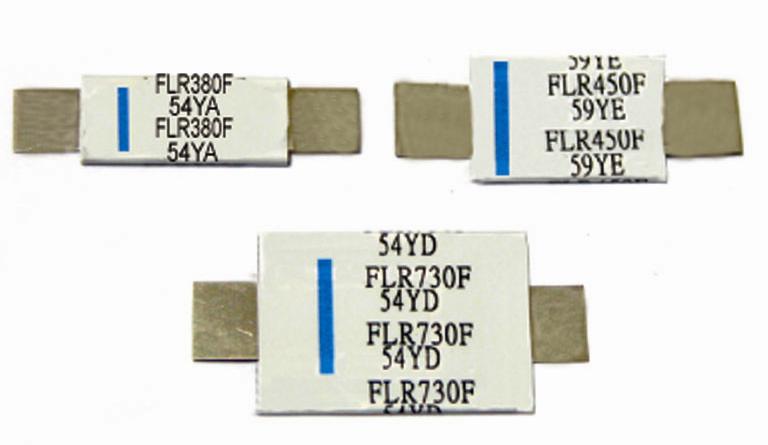

Product Pictures

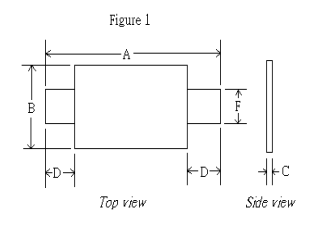

| Part Number |
A | B | C | D | F | |||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| FLR190F | 19.9 | 22.1 | 4.9 | 5.5 | 0.6 | 1 | 5.5 | 7.5 | 3.9 | 4.1 |
| FLR260F | 20.9 | 23.1 | 4.9 | 5.5 | 0.6 | 1 | 4.1 | 5.5 | 3.9 | 4.1 |
| FLR380F | 24.0 | 26.0 | 6.9 | 7.5 | 0.6 | 1 | 4.1 | 5.5 | 4.9 | 5.1 |
| FLR450F | 24.0 | 26.0 | 9.9 | 10.5 | 0.6 | 1 | 5.3 | 6.7 | 5.9 | 6.1 |
| FLR550F | 35.0 | 37.0 | 6.9 | 7.5 | 0.6 | 1 | 5.3 | 6.7 | 4.9 | 5.1 |
| FLR600F | 24.0 | 26.0 | 13.9 | 14.5 | 0.6 | 1 | 4.1 | 5.5 | 5.9 | 6.1 |
| FLR730F | 27.1 | 29.1 | 13.9 | 14.5 | 0.6 | 1 | 4.1 | 5.5 | 5.9 | 6.1 |
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic CharacteristicsMODEL |
V max. VDC |
Imax. Amps. |
Ihold |
Itrip |
R min. |
R1 max |
Pd |
| (A) | |||||||
FLR190F |
15 |
100 |
1.9 |
3.9 |
0.039 |
0.102 |
1.2 |
FLR260F |
15 |
100 |
2.6 |
5.8 |
0.020 |
0.063 |
2.5 |
FLR380F |
15 |
100 |
3.8 |
8.3 |
0.013 |
0.037 |
2.5 |
FLR450F |
20 |
100 |
4.5 |
8.9 |
0.011 |
0.028 |
2.5 |
FLR550F |
20 |
100 |
5.5 |
10.5 |
0.009 |
0.022 |
2.8 |
FLR450F |
20 |
100 |
6.0 |
11.7 |
0.007 |
0.019 |
2.8 |
FLR550F |
20 |
100 |
7.3 |
14.1 |
0.006 |
0.015 |
3.3 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
Standard Package: 1,000 PCS per polybag,
