PPTC FVL 12V DC Axial Lead Series for Batteries
．Designed for Laptop computer, Rechargeable Battery packs, Lithium cells.

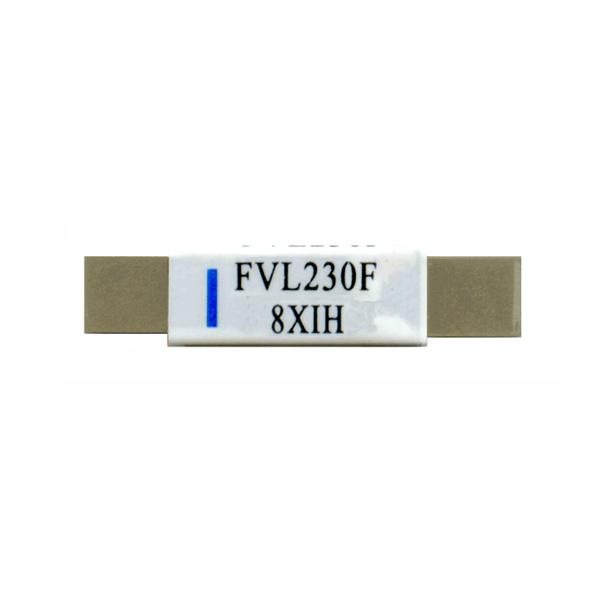

Product Pictures
Part Number |
A |
B |
C |
D |
E |
F |
||||||
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
|
FVL170F |
20.8 |
23.2 |
3.5 |
3.9 |
0.5 |
0.8 |
4.5 |
6.5 |
4.5 |
6.5 |
2.4 |
2.6 |
FVL175F |
23.0 |
24.5 |
2.9 |
3.3 |
0.5 |
0.8 |
4.7 |
7.2 |
3.8 |
5.4 |
2.4 |
2.6 |
FVL230F |
20.9 |
23.1 |
4.9 |
5.3 |
0.5 |
0.8 |
4.1 |
5.8 |
4.1 |
5.8 |
2.4 |
2.6 |
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic CharacteristicsMODEL |
V max. VDC |
Imax. Amps. |
Ihold |
Itrip |
R min. |
R1 max |
Time To |
Pd |
|
| (A) | Current (A) | Time (sec.) | |||||||
FVL170F |
12 |
100 |
1.7 |
4.1 |
0.018 |
0.064 |
8.50 | 5.00 |
1.4 |
FVL175F |
12 |
100 |
1.75 |
4.2 |
0.017 |
0.062 |
8.75 | 5.00 |
1.4 |
FVL230F |
12 |
100 |
2.3 |
5.0 |
0.012 |
0.036 |
11.5 | 5.00 |
1.4 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
Standard Package: 1,000 PCS per polybag,
