PPTC FVT 16V DC Axial Lead Series for Batteries
．Designed for Laptop computer, Rechargeable Battery packs, Lithium cells.

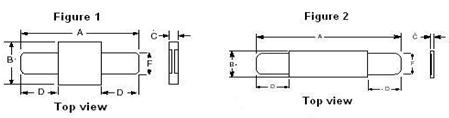

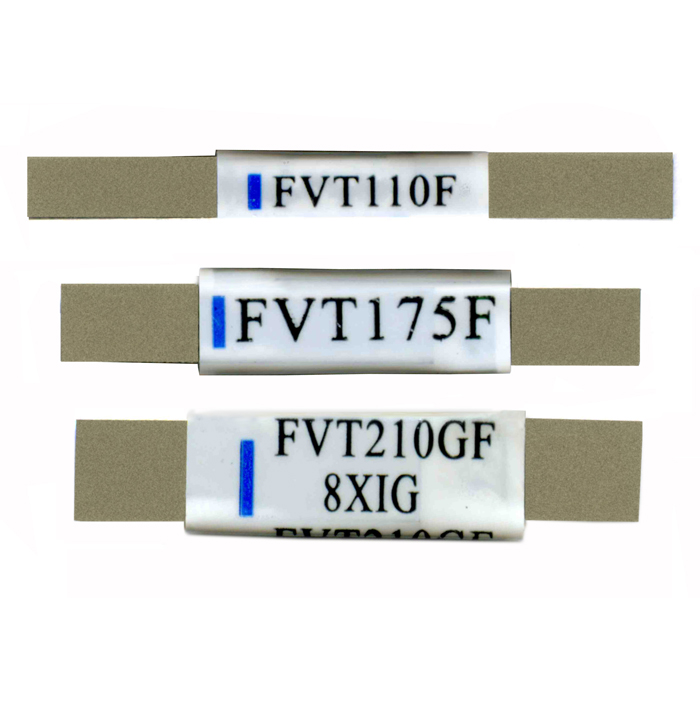

Product Pictures
Part Number |
Fig |
A |
B |
C |
D |
F |
|||||
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
||
FVT110F |
2 |
23.6 |
25.6 |
2.6 |
2.9 |
0.5 |
0.9 |
7.0 |
8.0 |
2.3 |
2.5 |
FVT170F |
1 |
15.4 |
17.5 |
7.0 |
7.4 |
0.5 |
0.9 |
4.0 |
6.2 |
3.9 |
4.1 |
FVT175F |
2 |
21.0 |
23.0 |
3.4 |
3.7 |
0.5 |
0.9 |
5.5 |
6.6 |
2.9 |
3.1 |
FVT200F |
2 |
21.0 |
23.0 |
4.1 |
4.5 |
0.5 |
0.9 |
3.5 |
4.8 |
2.9 |
3.1 |
FVT210GF |
2 |
21.0 |
23.0 |
4.9 |
5.2 |
0.5 |
0.9 |
4.1 |
5.5 |
3.9 |
4.1 |
FVT240F |
2 |
23.8 |
26.0 |
4.9 |
5.3 |
0.5 |
0.9 |
4.0 |
5.5 |
3.9 |
4.1 |
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic CharacteristicsMODEL |
V max. VDC |
Imax. Amps. |
Ihold |
Itrip |
R min. |
R1 max |
Time To |
Pd |
|
| (A) | Current (A) | Time (sec.) | |||||||
FVT110F |
16 |
100 |
1.10 |
2.70 |
0.038 |
0.140 |
5.50 | 5.00 |
0.7 |
FVT170F |
16 |
100 |
1.70 |
3.40 |
0.030 |
0.105 |
8.50 | 5.00 |
0.7 |
FVT175F |
16 |
100 |
1.75 |
3.60 |
0.029 |
0.102 |
8.75 | 5.00 |
0.8 |
FVT200F |
16 |
100 |
2.00 |
4.70 |
0.022 |
0.078 |
10.00 | 5.00 |
0.9 |
FVT210GF |
16 |
100 |
2.10 |
4.70 |
0.018 |
0.060 |
10.50 | 5.00 |
1.2 |
FVT240F |
16 |
100 |
2.40 |
5.90 |
0.014 |
0.052 |
12.00 | 5.00 |
1.0 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
Standard Package: 1,000 PCS per polybag,
