PPTC FLT 24V DC Axial Lead Series for Batteries
．Designed for Laptop computer, Rechargeable Battery packs, Lithium cells.

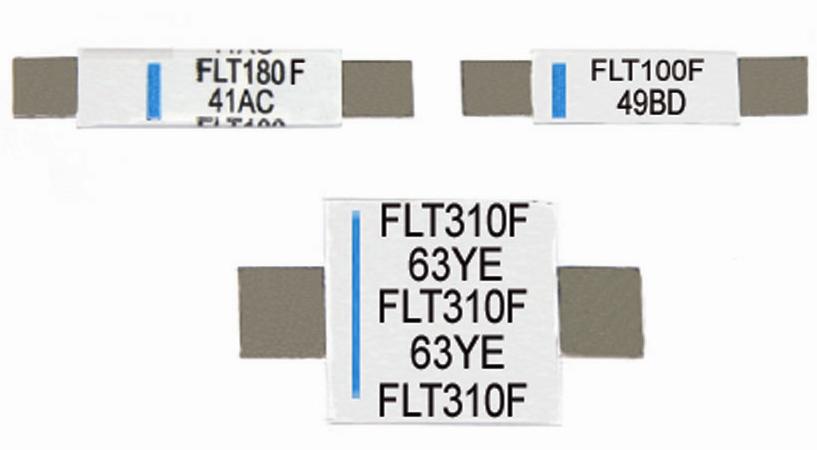

Product Pictures
| Part Number |
A | B | C | D | F | |||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| FLT070F | 19.9 | 22.1 | 4.9 | 5.2 | 0.7 | 1.2 | 5.5 | 7.5 | 3.9 | 4.1 |
| FLT100F | 20.9 | 23.1 | 4.9 | 5.2 | 0.6 | 1.0 | 4.1 | 5.5 | 3.9 | 4.1 |
| FLT180F | 24.0 | 26.0 | 4.9 | 5.2 | 0.6 | 1.0 | 4.1 | 5.5 | 3.9 | 4.1 |
| FLT190F | 21.3 | 23.4 | 10.2 | 11 | 0.5 | 1.1 | 5.0 | 7.6 | 4.8 | 5.4 |
| FLT260F | 24.0 | 26.0 | 10.8 | 11.9 | 0.6 | 1.0 | 5.0 | 7.0 | 5.9 | 6.1 |
| FLT300F | 28.4 | 31.8 | 13 | 13.5 | 0.5 | 1.1 | 6.3 | 8.9 | 6.0 | 6.6 |
| FLT310F | 24.0 | 26.0 | 14.8 | 15.9 | 0.6 | 1.0 | 5.0 | 7.0 | 5.9 | 6.1 |
| FLT340F | 24.0 | 26.0 | 14.8 | 15.9 | 0.6 | 1.0 | 4.0 | 5.0 | 5.9 | 6.1 |
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic CharacteristicsMODEL |
V max. VDC |
Imax. Amps. |
Ihold |
Itrip |
R min. |
R1 max |
Pd |
| (A) | |||||||
FLT070F |
24 |
100 |
1.9 |
3.9 |
0.100 |
0.340 |
1.1 |
FLT100F |
24 |
100 |
2.6 |
5.8 |
0.070 |
0.260 |
1.5 |
FLT180F |
24 |
100 |
3.8 |
8.3 |
0.040 |
0.120 |
2.0 |
FLT190F |
24 |
100 |
4.5 |
8.9 |
0.030 |
0.100 |
1.9 |
FLT260F |
24 |
100 |
5.5 |
10.5 |
0.025 |
0.076 |
2.3 |
FLT300F |
24 |
100 |
6.0 |
11.7 |
0.015 |
0.055 |
2.0 |
FLT310F |
24 |
100 |
7.3 |
14.1 |
0.018 |
0.055 |
2.5 |
FLT340F |
24 |
100 |
6.0 |
11.7 |
0.016 |
0.050 |
2.7 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
Standard Package: 1,000 PCS per polybag,
