PPTC FSR 15~30V DC Axial Lead Series for Batteries
．Designed for Laptop computer, Rechargeable Battery packs, Lithium cells.

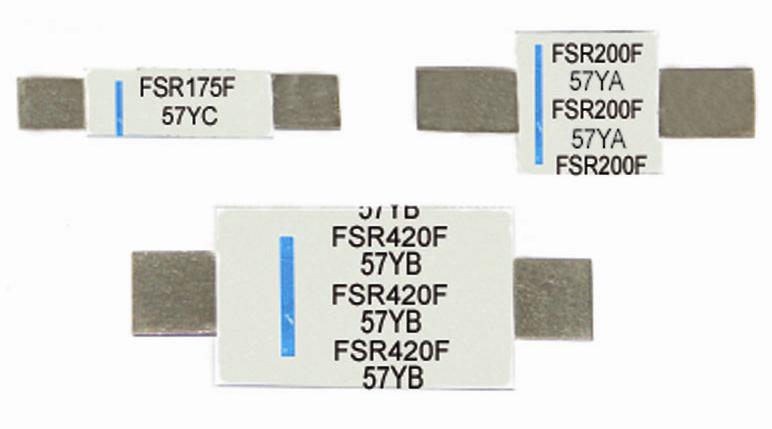

Product Pictures
| Part Number |
A | B | C | D | F | |||||
Min |
Max | Min |
Max | Min |
Max | Min |
Max | Min |
Max | |
| FSR120F | 19.9 | 22.1 | 4.9 | 5.2 | 0.6 | 1.0 | 5.5 | 7.5 | 3.9 | 4.1 |
| FSR175F | 20.9 | 23.1 | 4.9 | 5.2 | 0.6 | 1.0 | 4.1 | 5.5 | 3.9v | 4.1 |
| FSR200F | 21.3 | 23.4 | 10.2 | 11 | 0.5 | 1.1 | 5.0 | 7.6 | 4.8 | 5.4 |
| FSR350F | 28.4 | 31.8 | 13 | 13.5 | 0.5 | 1.1 | 6.3 | 8.9 | 6.0 | 6.6 |
| FSR420F | 30.6 | 32.4 | 12.9 | 13.6 | 0.5 | 1.1 | 5.0 | 7.5 | 6.0 | 6.7 |
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic CharacteristicsMODEL |
V max. VDC |
Imax. Amps. |
Ihold |
Itrip |
R min. |
R1 max |
Time To |
Pd |
|
| (A) | Current (A) | Time (sec.) | |||||||
FSR120F |
15 |
100 |
1.2 |
2.7 |
0.085 |
0.220 |
6.00 | 5.00 |
1.2 |
FSR175F |
15 |
100 |
1.75 |
4.2 |
0.017 |
0.062 |
8.75 | 5.00 |
1.5 |
FSR200F |
30 |
100 |
2.3 |
5.0 |
0.012 |
0.036 |
10.0 | 4.00 |
1.9 |
FSR350F |
30 |
100 |
1.75 |
4.2 |
0.017 |
0.062 |
17.5 | 3.00 |
2.5 |
FSR420F |
30 |
100 |
2.3 |
5.0 |
0.012 |
0.036 |
21.0 | 6.00 |
2.9 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
Standard Package: 1,000 PCS per polybag,
