JSO Glass Tube Automotive Fuse
JSO Glass Tube Fuse is commonly used in old model Japanese cars as circuit protection device for electronics. Nickel plated brass cap to ensure the fuse is corrosion resistant further improve connectivities between thee fuse and terminals.

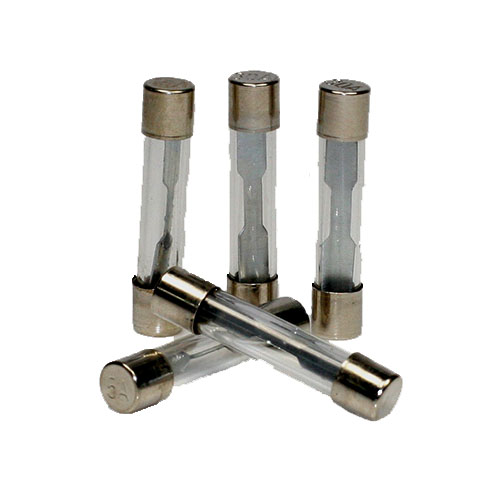

Product Pictures
Product Conformity- JASO D601
- EU RoHS, REACH
Electronic Characteristics| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
135% |
0.5 A – 40 A |
- | 1 hr |
| 150% | 1 A – 20 A | - |
15 Sec |
150% |
25 A – 30 A | - |
20 Sec |
| 200% | 40 A | - |
60 Sec |
Order Information| Part Number | Amperage Rating | Voltage Rating | Dimension (mm) |
| JSO-0.5 | 0.5A | 32V | Ø6.3 x 30 |
| JSO-1 | 1A | 32V | Ø6.3 x 30 |
| JSO-1.5 | 1.5A | 32V | Ø6.3 x 30 |
| JSO-2 | 2A | 32V | Ø6.3 x 30 |
| JSO-2.5 | 2.5A | 32V | Ø6.3 x 30 |
| JSO-3 | 3A | 32V | Ø6.3 x 30 |
| JSO-4 | 4A | 32V | Ø6.3 x 30 |
| JSO-5 | 5A | 32V | Ø6.3 x 30 |
| JSO-6 | 6A | 32V | Ø6.3 x 30 |
| JSO-7.5 | 7.5A | 32V | Ø6.3 x 30 |
| JSO-10 | 10A | 32V | Ø6.3 x 30 |
| JSO-15 | 15A | 32V | Ø6.3 x 30 |
| JSO-20 | 20A | 32V | Ø6.3 x 30 |
| JSO-25 | 25A | 32V | Ø6.3 x 30 |
| JSO-30 | 30A | 32V | Ø6.3 x 30 |
| JSO-35 | 35A | 32V | Ø6.3 x 30 |
| JSO-40 | 40A | 32V | Ø6.3 x 30 |
Product PackagingOEM Package: 1000PCS/polybag ;
Export Packaging: 1000PCS/polybag, 10,000PCS/carton.
