SFE Glass Tube Automotive Fuse
SFE Glass Tube Fuse is commonly used in old model American cars as circuit protection device for electronics. Nickel plated brass cap to ensure the fuse is corrosion resistant further improve connectivities between thee fuse and terminals.

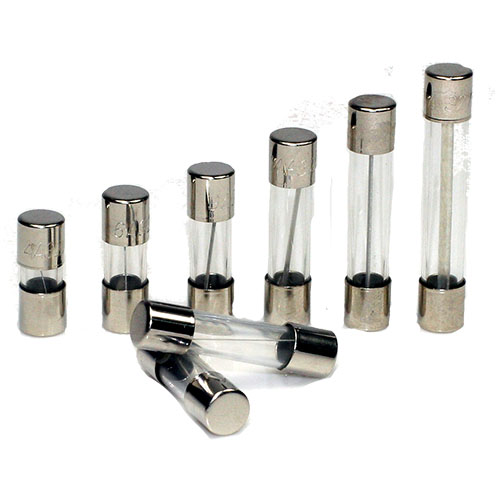

Product Pictures
Product Conformity- UL Certified
- EU RoHS, REACH
Electronic Characteristics| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
110% |
10mA – 300 Amp |
4 hrs | - |
| 135% | 10mA – 300 Amp | 5 Sec |
60 min |
200% |
10mA – 300 Amp | 5 Sec |
120 Sec |
Order Information| Part Number | Amperage Rating | Voltage Rating | Dimension (inch) |
| SFE-4 | 4A | 32V | Ø1/4 x 5/8 |
| SFE-6 | 6A | 32V | Ø1/4 x 3/4 |
| SFE-7.5 | 7.5A | 32V | Ø1/4 x 7/8 |
| SFE-9 | 9A | 32V | Ø1/4 x 7/8 |
| SFE-14 | 14A | 32V | Ø1/4 x 1-1/16 |
| SFE-20 | 20A | 32V | Ø1/4 x 1-1/4 |
| SFE-30 | 30A | 32V | Ø1/4 x 1-7/16 |
Product PackagingOEM Package: 1000PCS/polybag ;
Export Packaging: 1000PCS/polybag, 10,000PCS/carton.
