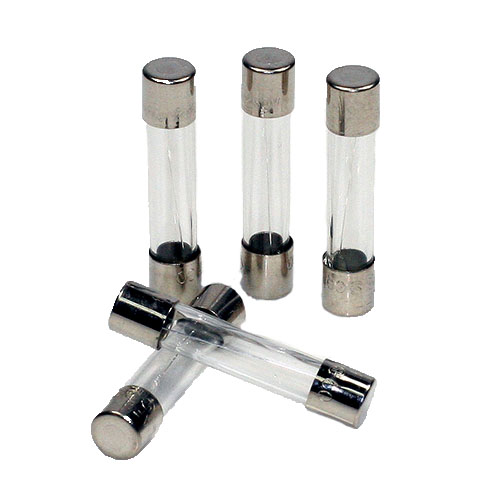

AFE Glass Tube Fast Acting Automotive Fuse is commonly used in old model American cars and electronic devices. Nickel plated brass cap to ensure the fuse is corrosion resistant further improve connectivities between thee fuse and terminals.
![](images/icon02.gif)
![](images/graph/afe.jpg)
![](images/auto/afe.jpg)

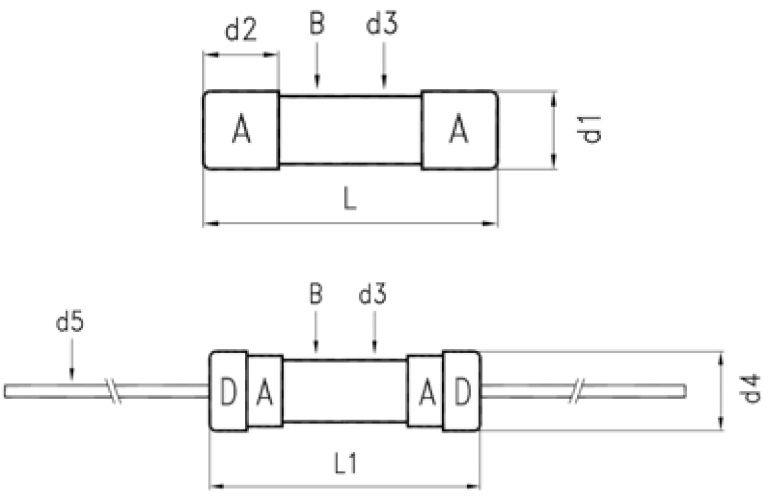

NO. | Part Description | Dimension |
A | Nickel Plated Brass Cap | - |
B | Transparent Glass Tube | - |
C | Fuse Element | - |
D | Tin Plated Copper Wire Lead Cap | - |
d1 | Diameter of Cap | 6.35 ± 0.1 mm |
d2 | Height of Cap | 6.45 ± 0.1 mm |
d3 | Diameter of Glass Tube | 5.62 ± 0.3 mm |
d4 | Diameter of Lead Wire Cap | 7.00 ± 0.1 mm |
d5 | Length of Lead Wire | 38.0 ± 2.0 mm |
L | Body of Fuse | 31.75 ± 0.75 mm |
L1 | Total length with Lead Wire Cap | 33.05 ± 0.75 mm |
![](images/icon02.gif)
- UL, CSA, PSE, JET (See below for detail)
- EU RoHS, REACH
![](images/icon02.gif)
% of Rating | Current Rating | Opening Time | |
Minimum | Maximum | ||
110% |
10mA – 300 Amp |
4 hrs | - |
135% | 10mA – 300 Amp | - |
60 min |
200% |
10mA – 300 Amp | 5 Sec |
120 Sec |
![](images/icon02.gif)
Part Number | Amperage Rating | Voltage Rating | Approval |
AFE-0.01 ~ AFE-0.8 | 10mA ~ 800mA | 250V | UL, CSA |
AFE-1 ~ AFE-5 | 1A ~ 5A | 250V | UL, CSA, PSE(250V, 125V, 32V), JET(250V, 125V, 32V) |
AFE-6 ~ AFE-10 | 6A ~ 10A | 250V | UL, CSA, PSE(250V), JET(250V) |
AFE-12 ~ AFE~30 | 12A ~ 30A | 32V | UL Recognized, CSA |
For Lead Wired version, the part number will be AFP.
![](images/icon02.gif)
Export Packaging: 1000PCS/polybag, 10,000PCS/carton.
