SMD0603 Series PPTC
Self resettable circuit protection device or use in consumer electronics, Computers, etc.

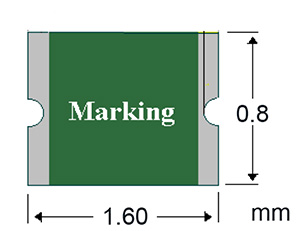

Product Pictures
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic Characteristics| Model Number | I hold | I trip | V max | I max | Maximum Time To Trip | Resistance | ||
| (A) | (A) | (V dc) | (A) | Current (A) |
Time (Sec.) |
R min(Ω) | R 1max(Ω) | |
| SMD0603P010TF | 0.10 | 0.30 | 15 | 40 | 0.50 | 1.00 | 0.900 | 6.000 |
| SMD0603P020TF | 0.20 | 0.50 | 9 | 40 | 1.00 | 0.06 | 0.550 | 3.500 |
| SMD0603P025TF | 0.25 | 0.55 | 9 | 40 | 8.00 | 0.08 | 0.500 | 3.000 |
| SMD0603P035TF | 0.35 | 0.75 | 6 | 40 | 8.00 | 0.10 | 0.200 | 1.000 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
SMD products are packaged in taping reel for pick-and-place machine.
Standard Package: 4,000 PCS per reel.
