SMD1206 Series PPTC
Self resettable circuit protection device or use in consumer electronics, Computers, etc.

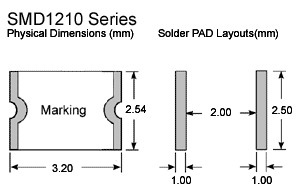

Product Pictures
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic Characteristics| Model Number | I hold | I trip | V max | I max | Maximum Time To Trip |
Resistance | ||
| (A) | (A) | (V dc) | (A) | Current (A) |
Time (Sec.) |
R min(Ω) | R 1max(Ω) | |
| SMD1210P005TF | 0.05 | 0.15 | 30 | 10 | 0.25 | 1.50 | 3.600 | 50.000 |
| SMD1210P010TF | 0.10 | 0.30 | 30 | 10 | 0.50 | 1.50 | 1.600 | 15.000 |
| SMD1210P020TF | 0.20 | 0.40 | 30 | 10 | 8.00 | 0.02 | 0.800 | 5.000 |
| SMD1210P035TF | 0.35 | 0.70 | 6 | 100 | 8.00 | 0.20 | 0.320 | 1.300 |
| SMD1210P050TF | 0.50 | 1.00 | 13.2 | 100 | 8.00 | 0.05 | 0.250 | 0.900 |
| SMD1210P075TF | 0.75 | 1.50 | 6 | 100 | 8.00 | 0.10 | 0.130 | 0.400 |
| SMD1210P110TFT | 1.10 | 2.20 | 8 | 100 | 8.00 | 0.10 | 0.060 | 0.210 |
| SMD1210P150TFT | 1.50 | 3.00 | 6 | 100 | 8.00 | 0.30 | 0.040 | 0.110 |
| SMD1210P175TF | 1.75 | 3.50 | 6 | 100 | 8.00 | 0.60 | 0.020 | 0.080 |
| SMD1210P200TFT | 2.00 | 4.00 | 6 | 100 | 8.00 | 1.00 | 0.015 | 0.070 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
SMD products are packaged in taping reel for pick-and-place machine.
Standard Package:
| Part Number | Packaged Quantity |
| SMD1210P005TF | 3000 |
| SMD1210P010TF | 3000 |
| SMD1210P020TF | 3000 |
| SMD1210P035TF | 4000 |
| SMD1210P050TF | 4000 |
| SMD1210P075TF | 4000 |
| SMD1210P110TFT | 4000 |
| SMD1210P150TFT | 3000 |
| SMD1210P175TF | 3000 |
| SMD1210P200TF | 2000 |
