SMD1812 Series PPTC
Self resettable circuit protection device or use in consumer electronics, Computers, etc.

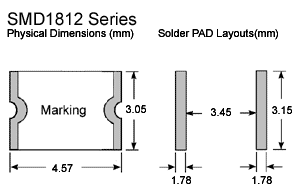

Product Pictures
Product Conformity- UL, CSA, TUV
- EU RoHS, REACH
Electronic Characteristics| Model Number | I hold | I trip | V max | I max | Maximum Time To Trip |
Resistance | ||
| (A) | (A) | (V dc) | (A) | Current (A) |
Time (Sec.) |
R min(Ω) | R 1max(Ω) | |
| SMD1812P010TF | 0.10 | 0.30 | 30 | 100 | 0.50 | 1.50 | 1.600 | 15.000 |
| SMD1812P014TF | 0.14 | 0.34 | 60 | 10 | 1.50 | 0.15 | 1.500 | 6.000 |
| SMD1812P020TF | 0.20 | 0.40 | 30 | 100 | 8.00 | 0.02 | 0.800 | 5.000 |
| SMD1812P035TF/30 | 0.35 | 0.75 | 30 | 40 | 8.00 | 0.15 | 0.400 | 1.700 |
| SMD1812P050TF | 0.50 | 1.00 | 15 | 100 | 8.00 | 0.15 | 0.150 | 1.000 |
| SMD1812P050TF/30 | 0.50 | 1.00 | 30 | 100 | 8.00 | 0.15 | 0.150 | 1.000 |
| SMD1812P075TF | 0.75 | 1.50 | 13.2 | 100 | 8.00 | 0.20 | 0.100 | 0.450 |
| SMD1812P075TF/24 | 0.75 | 1.50 | 24 | 100 | 8.00 | 0.20 | 0.110 | 0.290 |
| SMD1812P075TF/33 | 0.75 | 1.50 | 33 | 20 | 8.00 | 0.20 | 0.110 | 0.400 |
| SMD1812P110TF | 1.10 | 2.20 | 6 | 100 | 8.00 | 0.30 | 0.040 | 0.210 |
| SMD1812P110TF/16 | 1.10 | 1.95 | 16 | 100 | 8.00 | 0.50 | 0.060 | 0.180 |
| SMD1812P110TF/24 | 1.10 | 1.95 | 24 | 20 | 8.00 | 0.50 | 0.060 | 0.200 |
| SMD1812P110TF/33 | 1.10 | 1.95 | 33 | 20 | 8.00 | 0.50 | 0.060 | 0.200 |
| SMD18120P125TF/16 | 1.25 | 2.50 | 16 | 100 | 8.00 | 0.40 | 0.050 | 0.140 |
| SMD18120P125TF/6,4L | 1.25 | 2.50 | 6 | 100 | 8.00 | 0.40 | 0.050 | 0.140 |
| SMD1812P150TF/8 | 1.50 | 3.00 | 8 | 100 | 8.00 | 0.30 | 0.040 | 0.110 |
| SMD1812P150TF/12 | 1.50 | 3.00 | 12 | 100 | 8.00 | 0.50 | 0.040 | 0.110 |
| SMD1812P150TF/24 | 1.50 | 3.00 | 24 | 20 | 8.00 | 1.50 | 0.040 | 0.120 |
| SMD1812P160TF/8(4L) | 1.60 | 2.80 | 8 | 100 | 8.00 | 1.00 | 0.030 | 0.100 |
| SMD1812P200TFT | 2.00 | 3.50 | 8 | 100 | 8.00 | 2.00 | 0.020 | 0.070 |
| SMD1812P260TFT | 2.60 | 5.00 | 8 | 100 | 8.00 | 2.50 | 0.015 | 0.047 |
| SMD1812P260TF/12 | 2.60 | 5.00 | 12 | 100 | 8.00 | 5.00 | 0.015 | 0.055 |
| SMD1812P300TF | 3.00 | 5.00 | 6 | 100 | 8.00 | 4.00 | 0.012 | 0.040 |
V max. = Maximum voltage the device can withstand without damage at rated current.
I max. = Maximum fault current the device can withstand without damage at rated voltage.
I H = Hold current-maximum current at which the device will not trip at 20℃ still air.
I T = Trip current-minimum current at which the device will always trip at 20℃ still air.
R min. = Minimum device resistance at 20℃ prior to tripping.
R1 max. = Maximum device resistance at 20℃ measured 1 hour post
trip.
Product Packaging
SMD products are packaged in taping reel for pick-and-place machine.
Standard Package:
| Part Number | Packaged Quantity |
| SMD1812P010TF | 1500 |
| SMD1812P014TF | 1500 |
| SMD1812P020TF | 2000 |
| SMD1812P035TF/30 | 1500 |
| SMD1812P050TF | 2000 |
| SMD1812P050TF/30 | 2000 |
| SMD1812P075TF | 2000 |
| SMD1812P075TF/24 | 1500 |
| SMD1812P075TF/33 | 1500 |
| SMD1812P110TF | 2000 |
| SMD1812P110TF/16 | 1500 |
| SMD1812P110TF/24 | 1500 |
| SMD1812P110TF/33 | 1000 |
| SMD1812P125TF/16 | 1500 |
| SMD1812P125TF/6,4L | 2000 |
| SMD1812P150TF/8 | 2000 |
| SMD1812P150TF/12 | 1500 |
| SMD1812P150TF/24 | 1000 |
| SMD1812P160TF/8(4L) | 2000 |
| SMD1812P200TFT | 2000 |
| SMD1812P260TFT | 1500 |
| SMD1812P260TF/12 | 1000 |
| SMD1812P300TF | 1000 |
