PCB Fuse Block for Ø5.2mm Tube Fuse
Specification| Item Number | Insertion & Extraction Force | Dielectric Strength For 60 Seconds | Suitable Rated Current | Insulation Resistance At 500 V DC | Temperature Rise | Voltage Drop | |

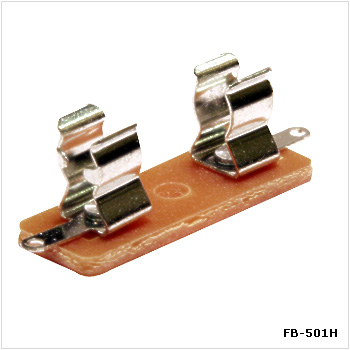

| FB - 501H |
 |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

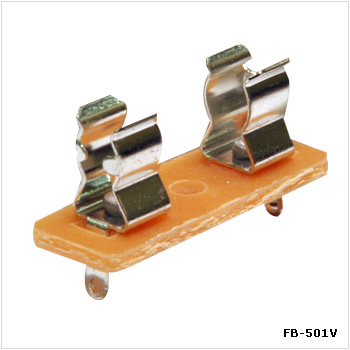

| FB - 501V |
 |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |
| FB - 502H |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |
| FB - 502V |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

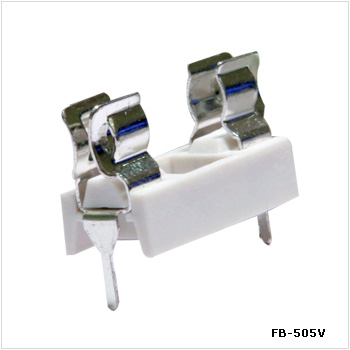

| FB - 505V |
 |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

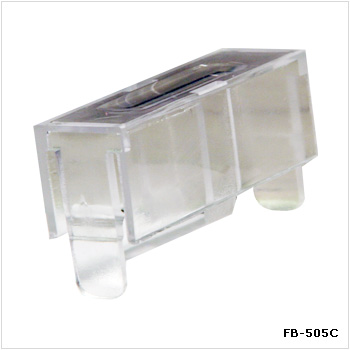

| FB - 505C |
 |
||||||

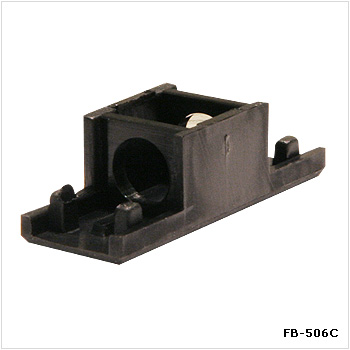

| FB - 506C |
 |
1 Kg. Min. | AC 500 V Min. | 10 A 250 V |
100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

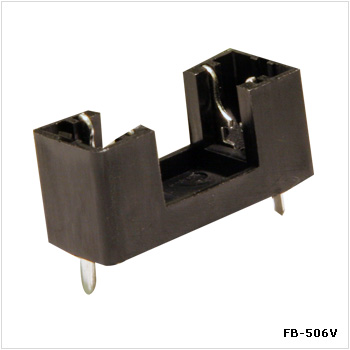

| FB - 506V |   |
1 Kg. Min. | AC 500 V Min. | 10 A 250 V |
100M (Ohm) Min. | 50°C Max. | 20 mV Max. |
| FB - 517 |
 |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |
| FB - 517C |  |
||||||
Product Packaging
Standard Package: 1,000 PCS per polybag,
