PCB Fuse Block for ATP Standard Blade Type Fuse
Specification| Item Number | Descriptioin | |

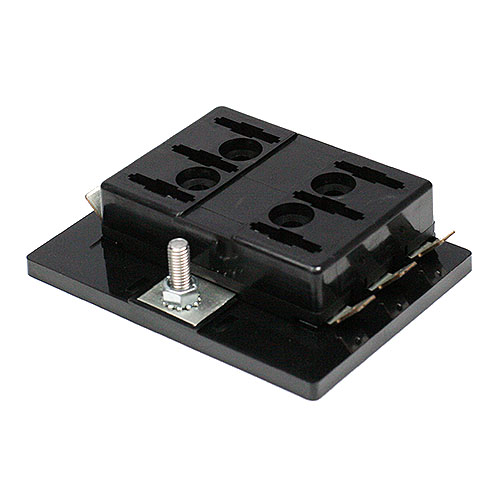

| FB-ATP-06 |
 |
Interchangeable Blade Terminal: Accept standard blade fuse and blade circuit breaker Maximum Current: Output terminal 30A MAX. Input stud 100A MAX Positions: 1 input; 6 outputs Material: Black, UL 94V0 thermoplastic |

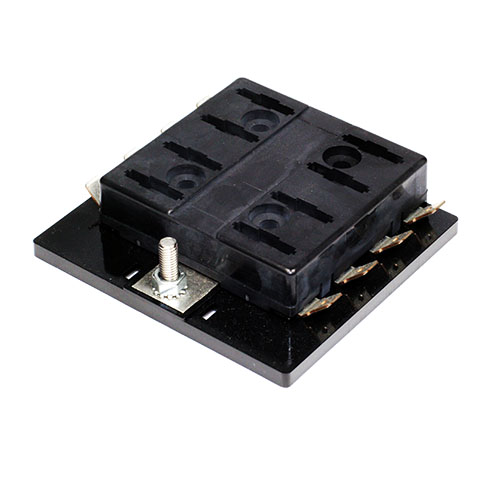

| FB-ATP-08 |
 |
Interchangeable Blade Terminal: Accept standard blade fuse and blade circuit breaker Maximum Current: Output terminal 30A MAX. Input stud 100A MAX Positions: 1 input; 8 outputs Material: Black, UL 94V0 thermoplastic |

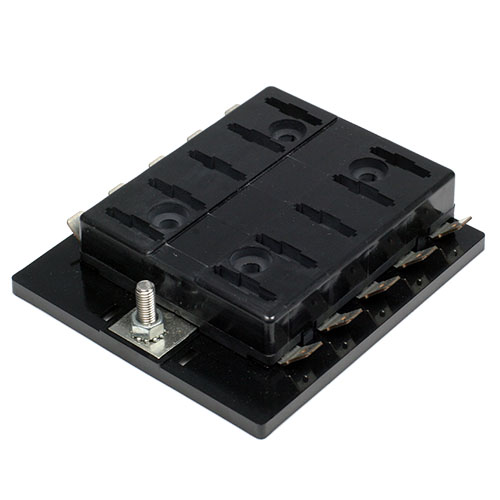

| FB-ATP-10 |
 |
Interchangeable Blade Terminal: Accept standard blade fuse and blade circuit breaker Maximum Current: Output terminal 30A MAX. Input stud 100A MAX Positions: 1 input; 10 outputs Material: Black, UL 94V0 thermoplastic |

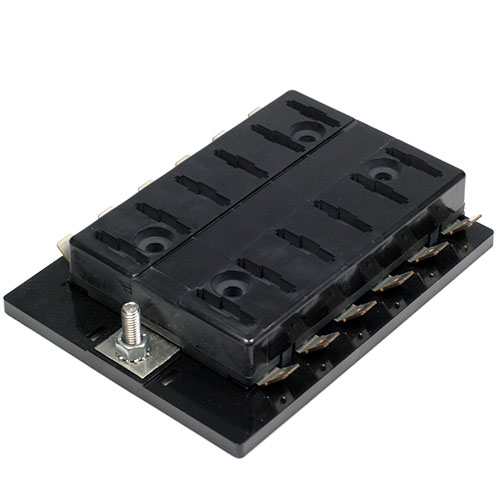

| FB-ATP-12 |
 |
Interchangeable Blade Terminal: Accept standard blade fuse and blade circuit breaker Maximum Current: Output terminal 30A MAX. Input stud 100A MAX Positions: 1 input; 12 outputs Material: Black, UL 94V0 thermoplastic |

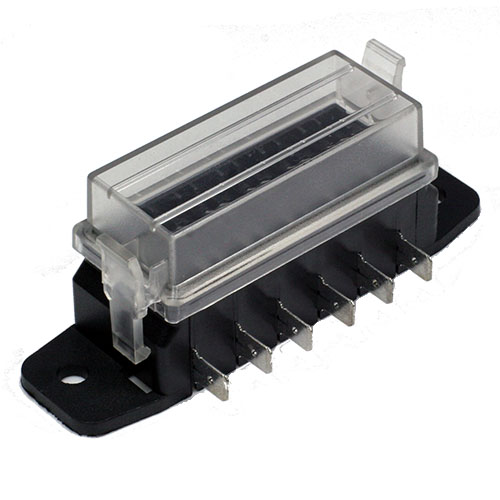

| FB-ATP-606 |
 |
Interchangeable Blade Terminal: Accept standard blade fuse and blade circuit breaker Maximum Current: Output terminal 20A MAX. Input stud 100A MAX Positions: 6 input; 6 outputs Material: Body: Black UL 94V0 thermoplastic; Cover: Transparent PC cover with splash proof rubber seal |
Product Packaging
Standard Package: 1,000 PCS per polybag,
