PCB Fuse Block for Ø6.3mm Tube Fuse
Specification| Item Number | Insertion & Extraction Force | Dielectric Strength For 60 Seconds | Suitable Rated Current | Insulation Resistance At 500 V DC | Temperature Rise | Voltage Drop | |

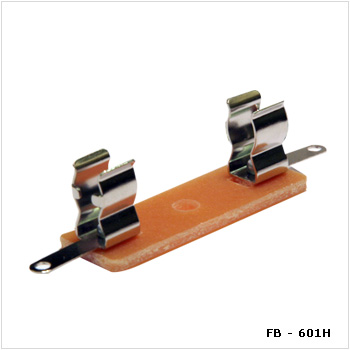

| FB - 601H |
 |
1 Kg. Min. | AC 500 V Min. | 10 A 250 V |
100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

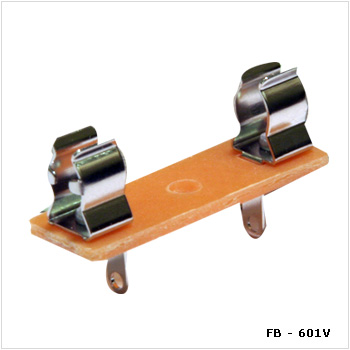

| FB - 601V |
 |
1 Kg. Min. | AC 500 V Min. | 10 A 250 V |
100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

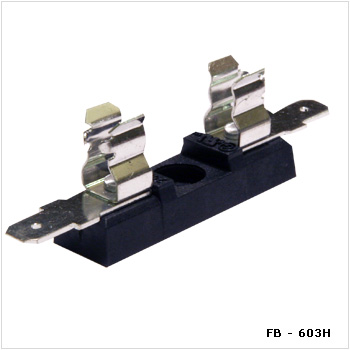

| FB - 603H |   |
1.5 Kg. Min. | AC 3000 V Min.. | 30 A 250 V |
500M (Ohm) Min. | 60°C Max. | 15 mV Max. |
| FB - 603V |  |
1.5 Kg. Min. | AC 3000 V Min. | 30 A 250 V |
500M (Ohm) Min. | 60°C Max. | 15 mV Max. |

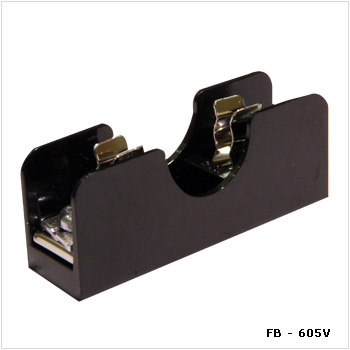

| FB - 605v |
 |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

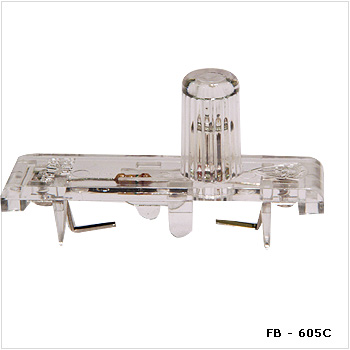

| FB - 605C |
 |
||||||

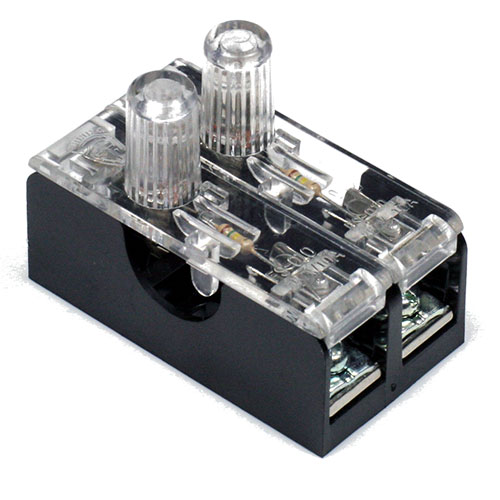

| FB - 606 |
 |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

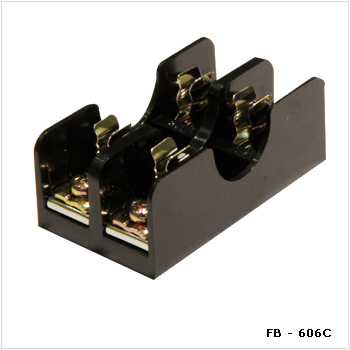

| FB - 606C |   |
||||||
Product Packaging
Standard Package: 1,000 PCS per polybag,
