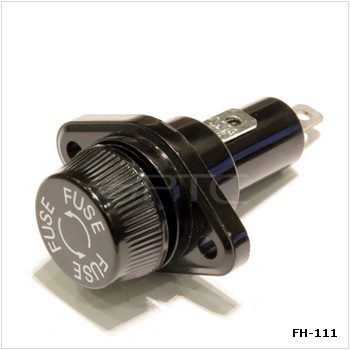

Panel Mount Fuse Holder for Ø10.3mm Tube Fuse
．Insulationg Body: Flame retarding UL 94 V0 Thermoplastic material
．Contact Terminals: Nickle or Tin Plated Copper Alloy
Specification| Item Number | Maximum Current | Insulation Resistance At 500 V DC |
Contact Resistance | Dielectric strength for 60 seconds |
||
| FH - 111 |
 |
30 A 600 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 3000 V Min. | Screw Knob For 10.3 x 38.1 mm (5AG) Fuses |
Product Packaging
Standard Package: 1,000 PCS per polybag,
