Subminiature pico fuses are specifically designed to use a circuit protection in consumer electronic appliances such as AV appliances, home appliances and computers.

• UL Recognized
• EU RoHS, REACH

For Fast Acting Type
% of Rating	Current Rating	Opening Time
		Minimum	Maximum
100%	375mA – 7 Amp 10A 12A - 15A	4 hrs	-
200%	375mA – 7 Amp 10A 12A - 15A	-	1 Sec 3 Sec 10 Sec
275%	375mA – 15 Amp	-	300 ms
400%	375mA – 15 Amp	-	30 ms
1000%	375mA – 15 Amp	-	4 ms

For Slow Blow Type
% of Rating	Current Rating	Opening Time
		Minimum	Maximum
100%	0.5A~5A	4 hrs	-
200%	0.5A~5A	-	120 Sec

Catalogue Number	Amperage Rating	Voltage Rating	Blow Type	Nominal Cold Resistance
PFP.375	375mA	125V	Very Fast Acting	2951 mΩ
PFP.500	500mA	125V	Very Fast Acting	2782 mΩ
PFP.750	750mA	125V	Very Fast Acting	1452 mΩ
PFP001	1A	125V	Very Fast Acting	745 mΩ
PFP1.25	1.25A	125V	Very Fast Acting	716 mΩ
PFP1.50	1.5A	125V	Very Fast Acting	544 mΩ
PFP002	2A	125V	Very Fast Acting	361 mΩ
PFP2.50	2.5A	125V	Very Fast Acting	257 mΩ
PFP003	3A	125V	Very Fast Acting	240 mΩ
PFP3.50	3.5A	125V	Very Fast Acting	218 mΩ
PFP004	4A	125V	Very Fast Acting	170 mΩ
PFP005	5A	125V	Very Fast Acting	144 mΩ
PFP06.3	6.3A	125V	Very Fast Acting	97 mΩ
PFP007	7A	125V	Very Fast Acting	90 mΩ
PFP010	10A	125V	Very Fast Acting	55 mΩ
PFP012	12A	32V	Very Fast Acting	52 mΩ
PFP015	15A	32V	Very Fast Acting	31 mΩ
PSP.500	500mA	125V	Slow Blow	2755 mΩ
PSP001	1A	125V	Slow Blow	1346 mΩ
PSP1.50	1.5A	125V	Slow Blow	594 mΩ
PSP002	2A	125V	Slow Blow	445 mΩ
PSP2.50	2.5A	125V	Slow Blow	278 mΩ
PSP003	3A	125V	Slow Blow	255 mΩ
PSP004	4A	125V	Slow Blow	166 mΩ
PSP005	5A	125V	Slow Blow	129 mΩ

* Please contact our sales for detail specification.

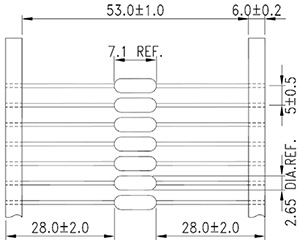

* Standard Package: 5,000 PCS per reel
