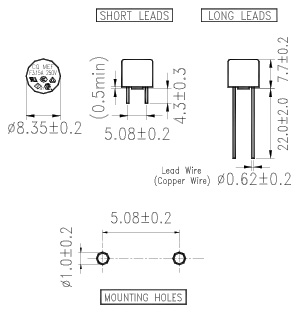

Ø8.3mm X 7.7mm(H) Micro Fuse
Micro fuses are specifically designed to use a circuit protection in consumer electronic appliances such as AV appliances, home appliances and computers.
Product Pictures
Product Conformity- UL Recognized, VDE, TUV, CSA, PSE
- EU RoHS, REACH
Electronic Characteristics| For Fast Acting Type | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
150% |
50mA – 6.3 Amp |
60 min | - |
| 210% | 50mA – 6.3 Amp | - |
30 min |
275% |
50mA – 6.3 Amp |
10 ms |
3 Sec |
| 400% | 50mA – 6.3 Amp |
3 ms |
300 ms |
| 1000% | 50mA – 6.3 Amp |
- |
20 ms |
| For Slow Blow Type | |||
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
150% |
40mA – 10 Amp |
60 min | - |
| 210% | 40mA – 10 Amp | - |
2 min |
275% |
40mA – 10 Amp |
400 ms | 10 Sec |
| 400% | 40mA – 10 Amp | 150 ms |
3 Sec |
| 1000% | 40mA – 5 Amp 6.3A – 10 Amp |
20 ms |
150 ms 150 ms |
Order Information| Catalogue Number | Amperage Rating | Voltage Rating | Blow Type | Nominal Cold Resistance |
| MEF | 50mA ~ 6.3A | 250V | Fast Acting | - |
| MET | 40mA ~ 10A | 250 | Slow Blow | - |
Please contact our sales for detail specification.

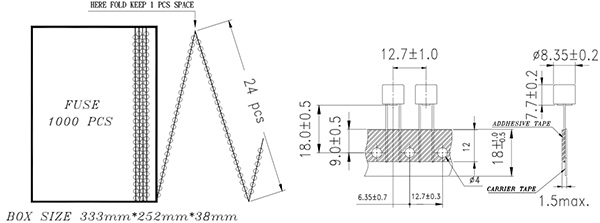

Standard Package: 1,000 PCS per box
